Nissan Sentra B18 (2020-2025) Service Manual: Electric Intake Valve Timing Control Module

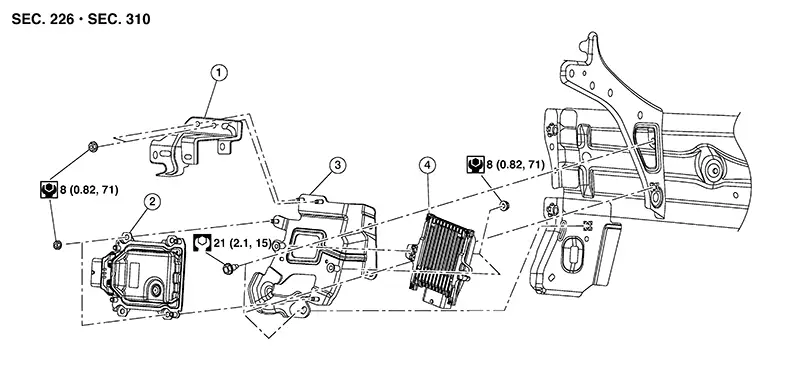

Electric Intake Valve Timing Control Module : Exploded View
|
1. |
TCM upper bracket (if equipped) |
2. |
TCM (if equipped) |
3. |
TCM bracket |
|
4. |
Electric intake valve timing control module |
Electric Intake Valve Timing Control Module : Removal & Inst
CAUTION:
If replacing perform "ELECTRIC INTAKE VALVE TIMING CONTROL LEARNING". Refer to Work Procedure.
REMOVAL
Disconnect the battery. Refer to Battery Disconnect.
Remove front wheel and tire (LH) using power tool. Refer to Removal and Installation.
Partially remove front fender protector (LH). Refer to Exploded View.

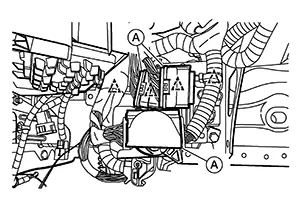

Disconnect harness connectors (A),
and release harness retainers.
|
|
: Clip |

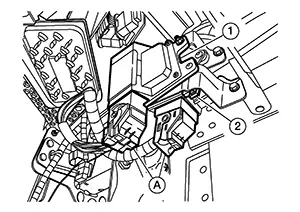

Disconnect the harness connectors
(A) from the TCM [1 (if equipped)], and electric intake valve timing
control module (2). Refer to Harness Connector (lever locking type).
Remove bolts (A) , and remove TCM
Bracket (1).
Remove nuts (A), and remove electric
intake valve timing control module (1).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
If replacing perform "ELECTRIC INTAKE VALVE TIMING CONTROL LEARNING". Refer to Work Procedure.
