Toyota Camry Owner's Manual (2023): Do-it-yourself service precautions

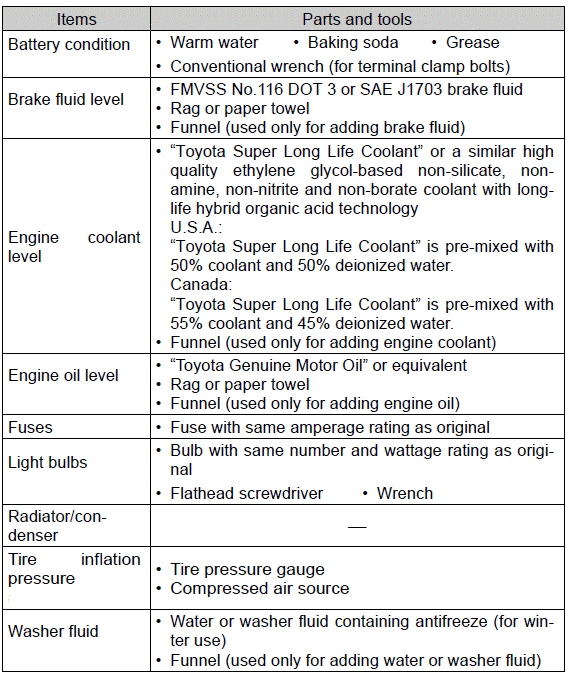

If you perform maintenance by yourself, be sure to follow the correct procedure as given in these sections.

Do-it-yourself maintenance

WARNING

The engine compartment contains many mechanisms and fluids that may move suddenly, become hot, or become electrically energized. To avoid death or serious injury, observe the following precautions.

■When working on the engine compartment

■When working near the electric cooling fan or radiator grille

Vehicles without a smart key system: Be sure the engine switch is off. With the engine switch in the "ON" position, the electric cooling fan may automatically start to run if the air conditioning is on and/or the coolant temperature is high.

Vehicles with a smart key system: Be sure the engine switch is off. With the engine switch in IGNITION ON mode, the electric cooling fan may automatically start to run if the air conditioning is on and/or the coolant temperature is high.

■Safety glasses

Wear safety glasses to prevent flying or falling material, fluid spray, etc.

from getting in your eyes.

NOTICE

■If you remove the air cleaner filter

Driving with the air cleaner filter removed may cause excessive engine wear due to dirt in the air.

Do-it-yourself maintenance
...

Hood
Release the lock from the inside of the vehicle to open the hood. 1. Pull the hood lock release lever. The hood will pop up slightly. 2. Pull up the auxiliary catch lever and lift the hood. ...
