Diagnosis Description
AUTO ACTIVE TEST
Description
In auto active test, the IPDM E/R sends a drive signal to the following systems to check their operation.
Operation Procedure
NOTE:
Never perform auto active test in the following conditions.
NOTE:
When auto active test is performed with hood opened, sprinkle water on windshield beforehand
NOTE:
Inspection in Auto Active Test

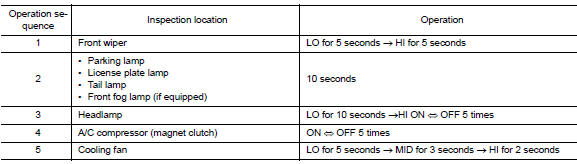

When auto active test is actuated, the following operation sequence is repeated 3 times.

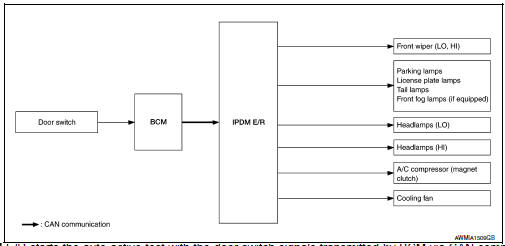

Concept of Auto Active Test

Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto active test starts successfully

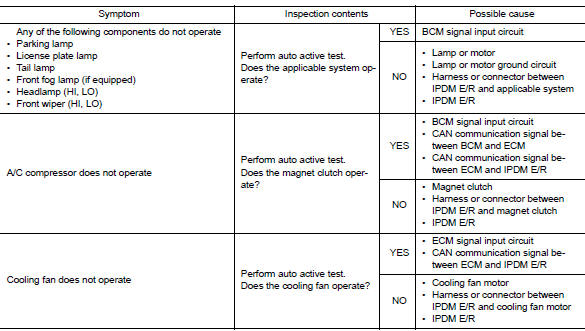

Diagnosis Chart in Auto Active Test

CONSULT Function (IPDM E/R)
APPLICATION ITEM
CONSULT performs the following functions via CAN communication with IPDM E/R.
| Direct Diagnostic Mode | Description |
| Ecu Identification | The IPDM E/R part number is displayed. |
| Self Diagnostic Result | The IPDM E/R self diagnostic results are displayed. |
| Data Monitor | The IPDM E/R input/output data is displayed in real time. |
| Active Test | The IPDM E/R activates outputs to test components. |
| CAN Diag Support Mntr | The result of transmit/receive diagnosis of CAN communication is displayed. |
ECU IDENTIFICATION
The IPDM E/R part number is displayed.
SELF DIAGNOSTIC RESULT
Refer to PCS-20, "DTC Index".

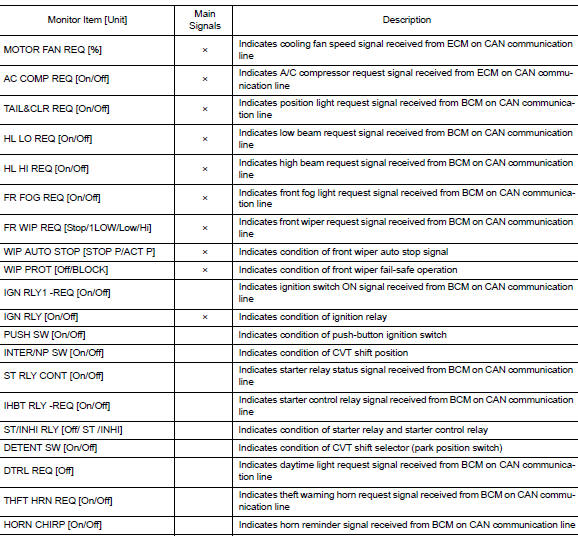

DATA MONITOR

ACTIVE TEST


CAN DIAG SUPPORT MNTR
Refer to LAN-13, "CAN Diagnostic Support Monitor".
