Nissan Sentra Service Manual: Diagnosis system (BCM)

Common item

Common item : consult function (bcm - common item)

Application item

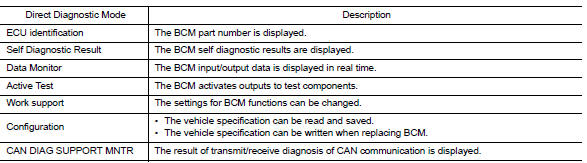

Consult performs the following functions via can communication with bcm.

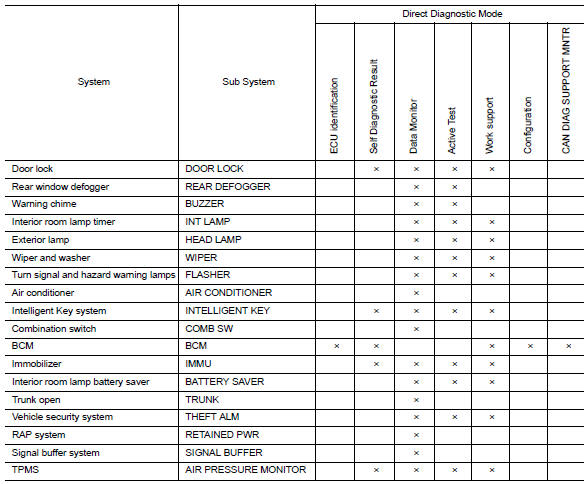

System application


System application

Bcm can perform the following functions.

Intelligent key


Intelligent key

Intelligent key : consult function (bcm - intelligent key)

Self diagnostic result

Refer to bcs-49, "dtc index".

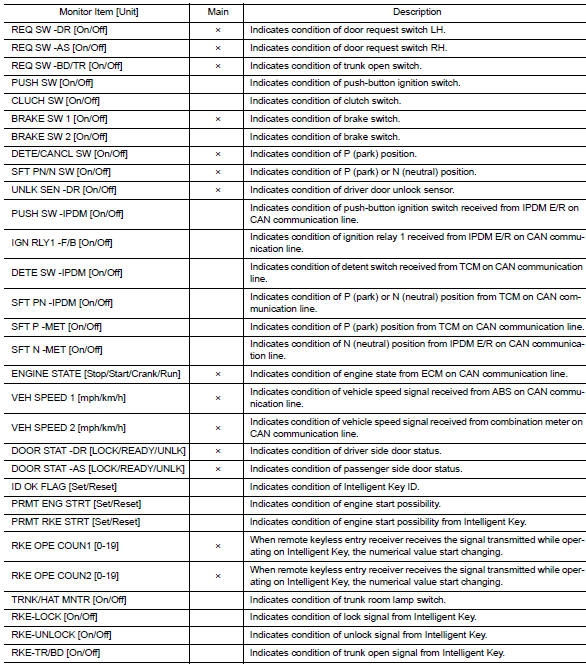

Data monitor

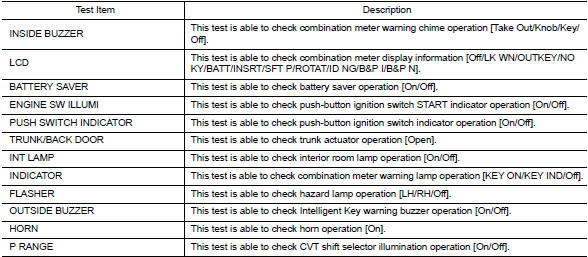

Active test


Active test

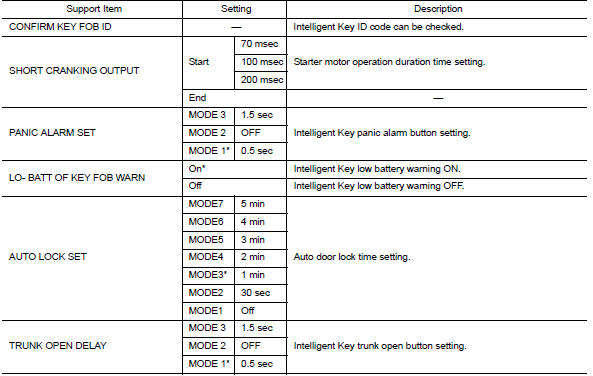

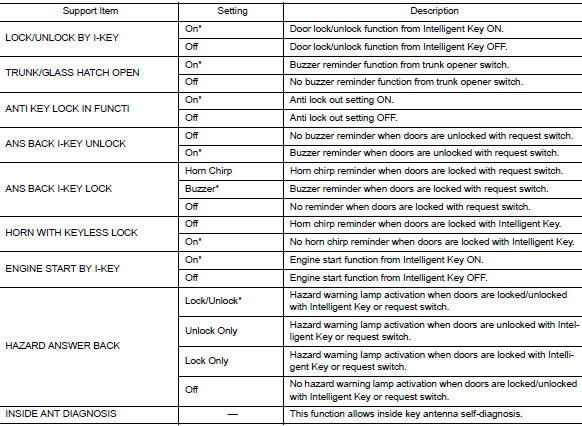

Work support


Work support


*: Initial setting


*: Initial setting

System description
Component parts Component parts location Ipdm e/r (contains ignition relay-1) Bcm (view with instrument panel removed) Fuse block (j/b) (front) Fuse block (j/b) (back) Blower relay ...

Ecu diagnosis information
Bcm, ipdm e/r List of ecu reference ...
