Nissan Sentra B18 (2020-2025) Service Manual: Component Parts
Adas Control Unit

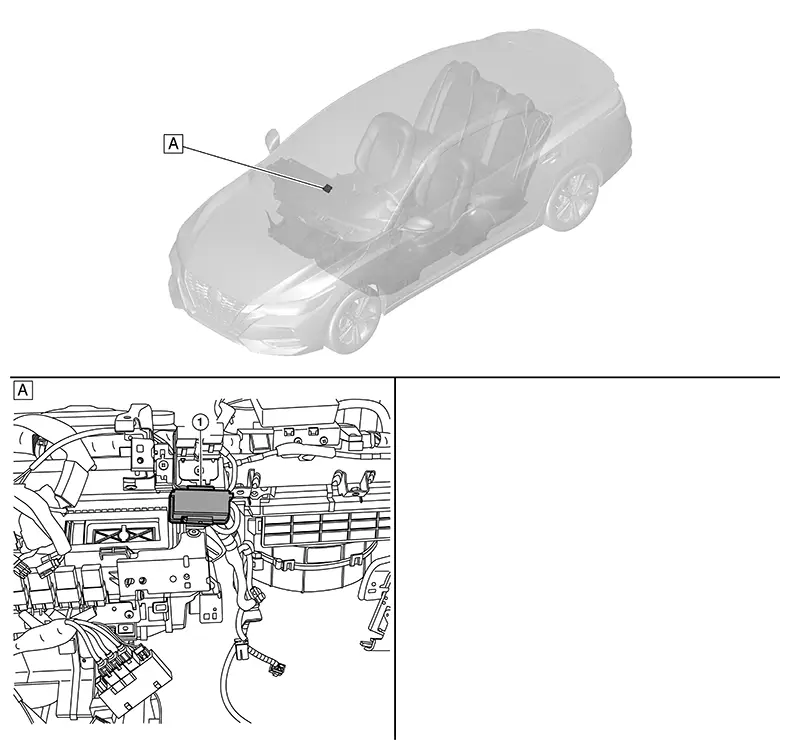

Component Parts Location
|
A. |
Instrument panel center area (view with instrument panel removed) |
|
No. |
Component |
Function |
|---|---|---|
|
1. |
ADAS (Advanced Driver Assistance System) control unit 2 |
Refer to ADAS Control Unit 2. |
Adas Control Unit 2
-
ADAS control unit 2 is installed behind the instrument panel left side.
-
Communicates with each control unit via CAN communication and ITS communication.
-
ADAS control unit 2 with gateway function is for system control signals that are transmitted to each control unit between CAN communication and ITS communication by the ADAS control unit 2.
-
ADAS control unit 2 controls each system, based on ITS communication signals and CAN communication signals from each control unit.
System
System Description
System Description
DESCRIPTION
ADAS* control unit 2 controls the following
systems, based on CAN communication signal from each control unit.
Note: ...
