Nissan Sentra B18 (2020-2025) Service Manual: Component Parts

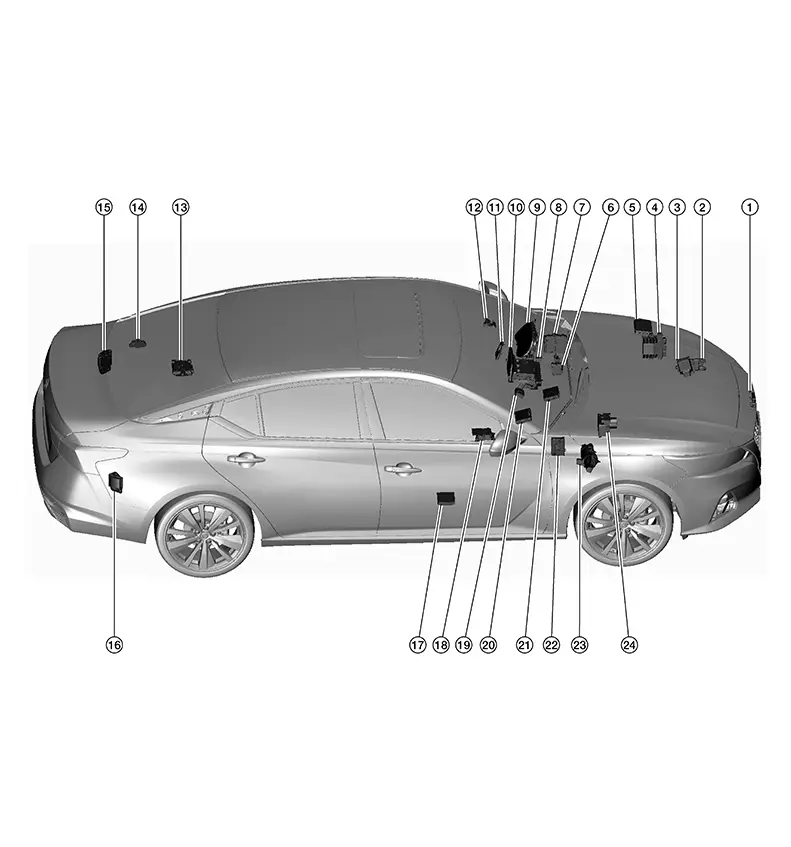

Component Parts Location

Component Parts Location

1.

Distance sensor

2.

TCM

3.

Electric intake valve timing control module

4.

ECM

5.

IPDM E/R

6.

8CH CAN gateway

7.

BCM

8.

Data link connector

9.

Combination meter

10.

AV control unit

11.

Chassis control module (with built in steering angle sensor)

12.

Front camera unit

13.

BOSE speaker amp.

14.

Sonar control unit

15.

Side radar LH

16.

Side radar RH

17.

Around view monitor control unit

18.

Air bag diagnosis sensor unit

19.

ADAS control unit 2

20.

  • A/C auto amp. (With auto A/C)

  • A/C amp. (With manual A/C)

21.

Intelligent Key unit

22.

TCU

23.

EPS control unit

24

ABS actuator and electric unit (control unit)
