Nissan Sentra B18 (2020-2025) Service Manual: Body Component Parts

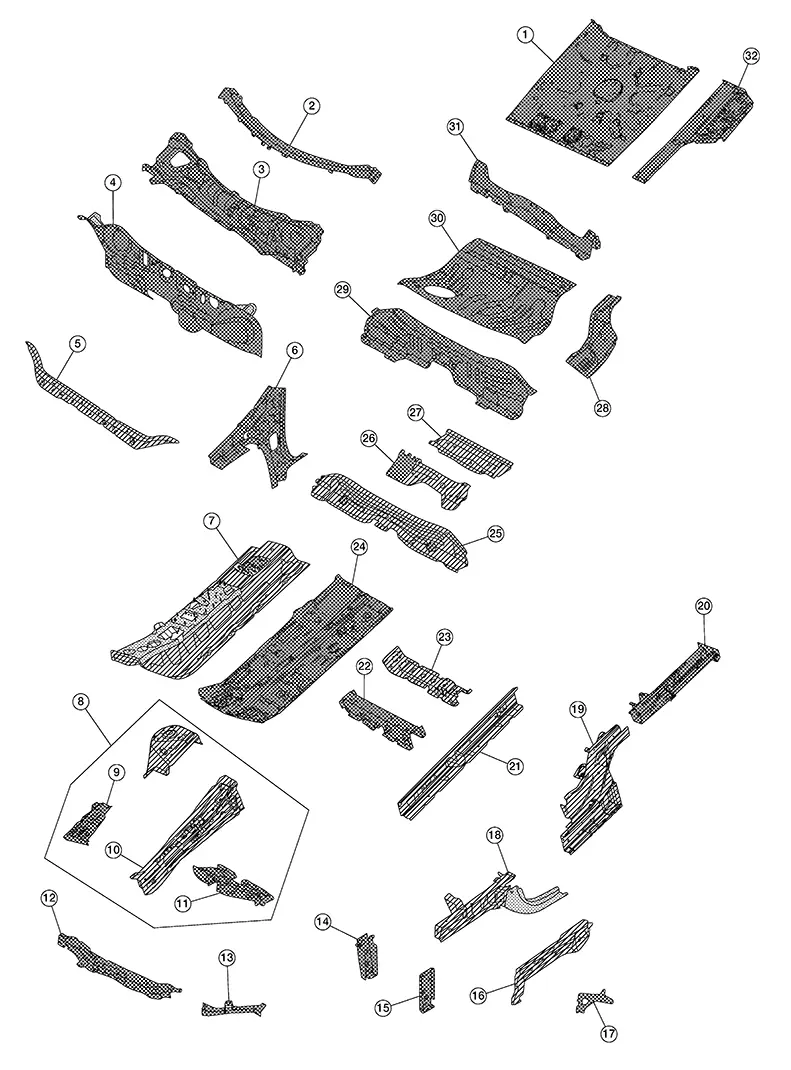

Underbody Component, Engine Compartment Parts
|
|
: Both sided anti-corrosive precoated steel portions |
||||
|
|
: High strength steel (HSS) sections |
||||
|
|
: Both sided anti-corrosive steel and HSS portions |
||||
|
No. |
Parts name |
Tensile strength (MPa) |
Both sided anti-corrosive precoated steel sections |
Aluminum portion |
|||
|---|---|---|---|---|---|---|---|
|
1. |
Rear floor rear |
Under 440 |
x |
— |
|||
|
2. |
Cowl top |
Under 440 |
x |
— |
|||
|
3. |
Dash assembly upper |
440 |
x |
— |
|||
|
4. |
Dash assembly lower |
Under 440 |
x |
— |
|||
|
5. |
Dash assembly lower cross member |
1300 |
x |
— |
|||
|
6. |
Dash side |
440 |
x |
— |
|||
|
7. |
Front floor center assembly |
780 |
x |
— |
|||
|
8. |
Front strut housing assembly |
590 |
x |
— |
|||
|
9. |
Front hoodledge lower |
440 |
x |
— |
|||
|
10. |
Front hoodledge reinforcement |
440 |
x |
— |
|||
|
11. |
Front suspension mounting rear bracket assembly |
590 |
x |
— |
|||
|
12. |
Upper radiator core support |
Under 440 |
x |
— |
|||
|
13. |
Upper radiator core support side |
Under 440 |
x |
— |
|||
|
14. |
Front side member extension inner |
590 |
x |
— |
|||
|
15. |
Front side member extension outer |
590 |
x |
— |
|||
|
16. |
Front side member closing plate |
980 |
x |
— |
|||
|
17. |
Hoodledge connector |
Under 440 |
x |
— |
|||
|
18. |
Front side member assembly |
980 |
x |
— |
|||
|
19. |
Rear side member assembly |
980 |
x |
— |
|||
|
20. |
Rear side member assembly extension |
590 |
x |
— |
|||
|
21. |
Sill inner |
980 |
x |
— |
|||
|
22. |
2nd cross member |
Under 440 |
x |
— |
|||
|
23. |
3rd cross member |
1180 |
x |
— |
|||
|
24. |
Front floor RH/LH |
590 |
x |
— |
|||
|
25. |
Rear seat cross member |
590 |
x |
— |
|||
|
26. |
Rear cross member reinforcement |
590 |
x |
— |
|||
|
27. |
Rear cross member center assembly |
590 |
x |
— |
|||
|
28. |
Rear side member closing plate |
590 |
x |
— |
|||
|
29. |
Rear floor front extension |
Under 440 |
x |
— |
|||
|
30. |
Rear floor front |
Under 440 |
x |
— |
|||
|
31. |
Rear seatback lower support assembly |
Under 440 |
x |
— |
|||
|
32. |
Rear floor side assembly |
Under 440 |
x |
— |
|||
CAUTION:
If the high strength steel (ultra high strength steel) is bent or broken, replace by assembly for the supply part.
Note:
-
For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.
-
Tensile strength column shows the largest strength value of a part in the component part.

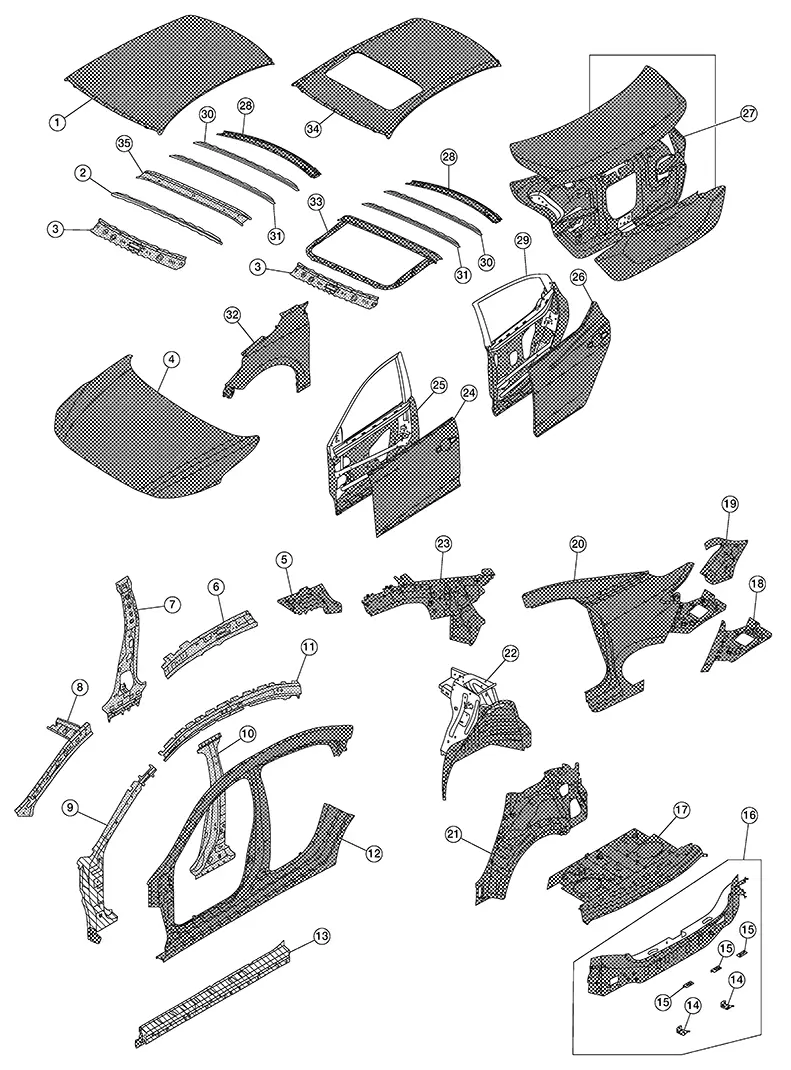

Body Component Parts
|
|
: Both sided anti-corrosive precoated steel portions |
||||
|
|
: High strength steel (HSS) sections |
||||
|
|
: Both sided anti-corrosive steel and HSS portions |
||||
|
No. |
Parts name |
Tensile strength (MPa) |
Both sided anti-corrosive precoated steel sections |
Aluminum portion |
|||
|---|---|---|---|---|---|---|---|
|
1. |
Roof panel |
Under 440 |
X |
— |
|||
|
2. |
Roof bow 1st |
440 |
X |
— |
|||
|
3. |
Front roof rail |
Under 440 |
X |
— |
|||
|
4. |
Hood |
Under 440 |
X |
— |
|||
|
5. |
Rear parcel shelf side RH/LH |
1180 |
X |
— |
|||
|
6. |
Roof side rail inner |
980 |
X |
— |
|||
|
7. |
Center pillar inner |
980 |
X |
— |
|||
|
8. |
Front pillar upper inner |
1180 |
X |
— |
|||
|
9. |
Front pillar outer reinforcement |
1180 |
X |
— |
|||
|
10. |
Center pillar reinforcement |
1180 |
— |
— |
|||
|
11. |
Roof side rail outer reinforcement |
1180 |
X |
— |
|||
|
12. |
Body side outer |
Under 440 |
X |
— |
|||
|
13. |
Outer sill reinforcement |
1180 |
X |
— |
|||
|
14. |
Rear side bumper bracket |
Under 440 |
X |
— |
|||
|
15. |
Upper rear bumper retainer |
Under 440 |
X |
— |
|||
|
16. |
Rear panel assembly |
Under 440 |
X |
— |
|||
|
17. |
Parcel shelf |
Under 440 |
X |
— |
|||
|
18. |
Rear fender extension |
Under 440 |
X |
— |
|||
|
19. |
Rear combination lamp (body side) pocket |
Under 440 |
X |
— |
|||
|
20. |
Rear fender |
Under 440 |
X |
— |
|||
|
21. |
Rear outer wheelhouse |
Under 440 |
X |
— |
|||
|
22. |
Rear inner wheelhouse |
440 |
X |
— |
|||
|
23. |
Rear pillar inner |
Under 440 |
X |
— |
|||
|
24. |
Front door panel |
Under 440 |
X |
— |
|||
|
25. |
Front door assembly |
Under 440 |
X |
— |
|||
|
26. |
Rear door panel |
Under 440 |
X |
— |
|||
|
27. |
Trunk lid |
Under 440 |
X |
— |
|||
|
28. |
Roof rail rear |
Under 440 |
X |
— |
|||
|
29. |
Rear door assembly |
440 |
X |
— |
|||
|
30. |
Roof bow 4th |
Under 440 |
X |
— |
|||
|
31. |
Roof bow 3rd |
Under 440 |
X |
— |
|||
|
32. |
Front fender |
Under 440 |
X |
— |
|||
|
33. |
Moonroof reinforcement assembly |
Under 440 |
X |
— |
|||
|
34. |
Moonroof panel |
Under 440 |
X |
— |
|||
|
35. |
Roof bow 2nd |
1180 |
X |
— |
|||
CAUTION:
If the high strength steel (ultra high strength steel) is bent or broken, replace by assembly for the supply part.
Note:
-
For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.
-
Tensile strength column shows the largest strength value of a part in the component part.
Repairing Material
Foam Repair
Foam Repair
During factory body assembly, foam insulators are
installed in certain body panels and locations around the Nissan Sentra vehicle.
Use the following procedure(s) t ...
