Nissan Sentra B18 (2020-2025) Service Manual: Repairing Material
Foam Repair
During factory body assembly, foam insulators are installed in certain body panels and locations around the Nissan Sentra vehicle. Use the following procedure(s) to replace any factory-installed foam insulators.
URETHANE FOAM APPLICATIONS
Use commercially available urethane foam for sealant (foam material) repair of material used on Nissan Sentra vehicle.
|
<Urethane foam for foaming agent> |
3M™ Flexible Foam 08463 or equivalent |
Read instructions on product for fill procedures.
CAUTION:
To avoid the risk of minor personal injury or property damage:
Always install urethane foam after welded panels are installed and welding is complete.

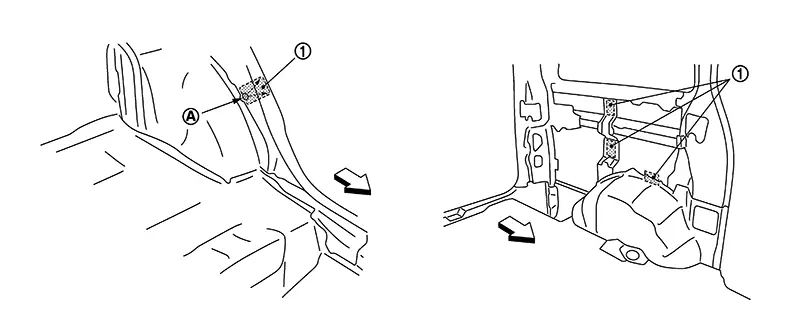

Example of foaming agent filling operation procedure:
Fill
procedures after installation of service part. Eliminate foam material remaining on
Nissan Sentra vehicle side. Clean
area after eliminating foam insulator and foam
material. Install service part. Insert nozzle into hole near fill
area and fill foam material or fill enough to close gap with the
service part.
|
1. |
Urethane foam |
A. |
Nozzle insert hole |
|
Front |
Fill
procedures before installation of service part: Eliminate foam material remaining on
Nissan Sentra vehicle side. Clean
area after eliminating foam insulator and foam
material. Fill
with enough foam material on the wheelhouse outer side to close the
gap with the service part while avoiding the flange area.
|
1. |
Urethane foam |
|
A. |
Fill while avoiding flange area |
|
|
Front |
Refer to the label on the urethane foam container for information on working times.
