Nissan Sentra B18 (2020-2025) Service Manual: Av Control Unit

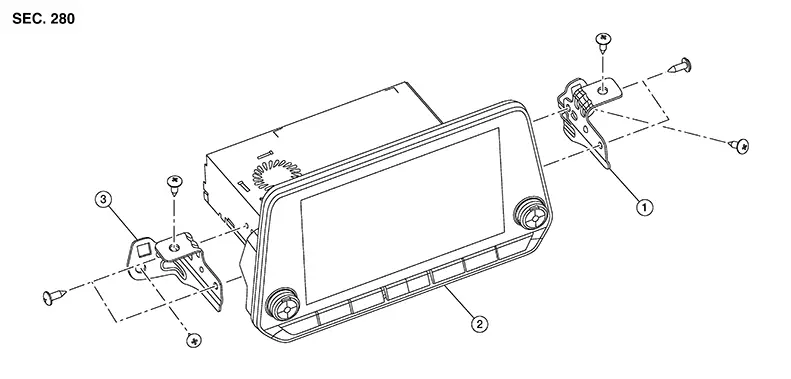

Exploded View
|
1. |
AV control unit bracket (LH) |
2. |
AV control unit |
3. |
AV control unit bracket (RH) |
Removal and Installation
REMOVAL
CAUTION:
When replacing AV control unit, perform "ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT. Refer to Work Procedure.
Disconnect the negative battery terminal. Refer to Battery Disconnect.
Remove cluster lid C. Refer to Removal and Installation
Remove the AV control unit screws, then pull out the AV control unit.
Disconnect the harness connectors from the AV control unit and remove.
If necessary, remove the AV control unit bracket (LH/RH) screws and the AV control unit brackets (LH/RH).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
When replacing AV control unit, perform "ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT". Refer to Work Procedure.
