Nissan Sentra B18 (2020-2025) Owner's Manual: Automatic Emergency Braking (AEB) with Pedestrian Detection

WARNING

Failure to carefully follow all warnings and instructions for proper use of the Automatic Emergency Braking (AEB) with Pedestrian Detection system could result in serious injury or death.

• The AEB with Pedestrian Detection system on the Nissan Sentra is a supplemental driver assistance feature. It does not replace the driver’s responsibility to remain attentive to traffic conditions and operate the vehicle safely at all times.

  The system cannot prevent accidents caused by inattentive driving, improper vehicle operation, or unsafe driving behavior.

• The AEB with Pedestrian Detection system does not operate in all driving, traffic, weather, or road conditions, and system performance may vary depending on the environment.

The Automatic Emergency Braking with Pedestrian Detection system on the Nissan Sentra is designed to assist the driver when there is a potential risk of a forward collision with a vehicle traveling ahead in the same lane or with a pedestrian detected ahead in the travel path.

The AEB with Pedestrian Detection system uses a forward-facing radar sensor B located at the front of the Nissan Sentra to measure the distance and relative speed of vehicles ahead in the same lane. For pedestrian detection, the system also relies on a camera A installed behind the windshield, working together with the radar sensor to identify pedestrians in the vehicle’s path.

AEB with Pedestrian Detection system operation

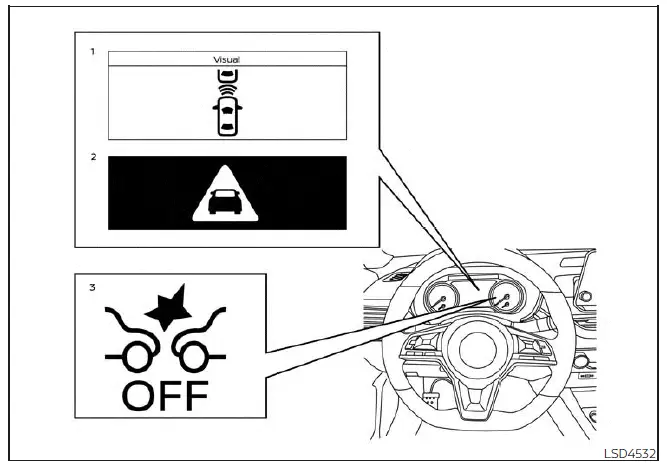

For vehicles with the 7 inch meter display

1. Vehicle ahead detection indicator
2. AEB with Pedestrian Detection emergency warning indicator
3. AEB with Pedestrian Detection system warning light

The AEB system on the Nissan Sentra operates at vehicle speeds above approximately 3 mph (5 km/h). For pedestrian detection functionality, the system operates within a speed range of approximately 6–37 mph (10–60 km/h).

If a potential forward collision is detected, the AEB with Pedestrian Detection system initially alerts the driver by flashing the vehicle-ahead detection indicator (yellow) in the vehicle information display and sounding an audible warning. If the driver applies the brakes firmly and quickly after this warning, and the system determines that a collision risk still exists, the system will automatically increase braking force to assist in reducing impact severity.

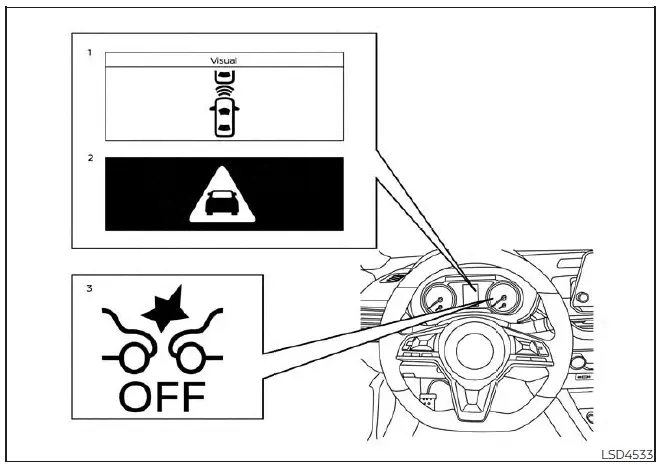

For vehicles with the 4.2 inch meter display

If the driver does not respond to the initial warning, the AEB with Pedestrian Detection system issues a second visual warning (flashing red and white) along with an audible alert. If the accelerator pedal is released, the system applies partial braking. If the risk of collision becomes imminent, the system will automatically apply stronger braking to help reduce vehicle speed.

While the AEB with Pedestrian Detection system is actively braking, a braking sound may be heard. This is normal and indicates that the Nissan Sentra’s braking system is functioning as intended.

NOTE:

The vehicle’s brake lights will illuminate whenever braking is applied by the AEB with Pedestrian Detection system.

Depending on vehicle speed, distance to the vehicle or pedestrian ahead, road conditions, and surrounding traffic, the system may help avoid a forward collision or help mitigate the severity of an unavoidable impact.

If the driver is actively steering, accelerating, or braking, the AEB with Pedestrian Detection system may respond later or may not intervene.

The automatic braking function will cease under the following conditions:

• When the steering wheel is turned to avoid a collision.
• When the accelerator pedal is depressed.
• When a vehicle or pedestrian is no longer detected ahead.

If the AEB with Pedestrian Detection system brings the Nissan Sentra to a complete stop, the vehicle will remain stationary for approximately 2 seconds before brake pressure is released.

Turning the AEB with Pedestrian Detection system ON/OFF

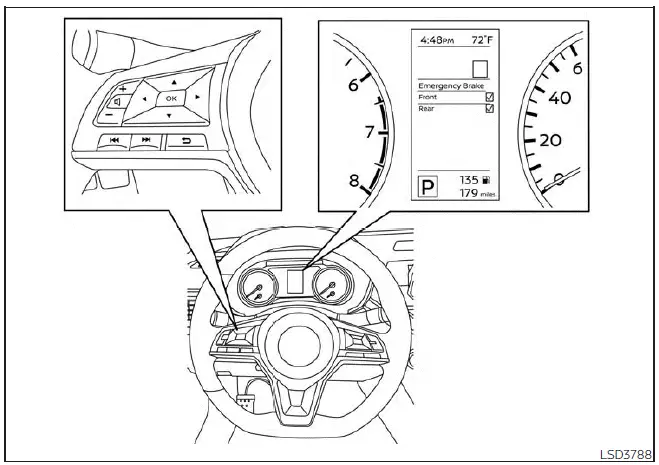

For vehicles with the 7 inch meter display

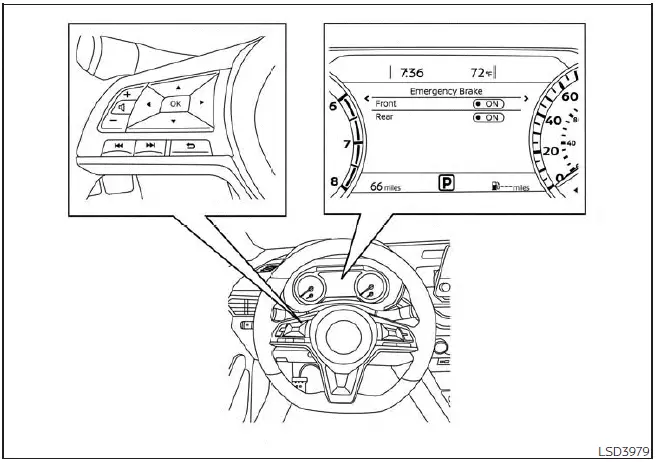

For vehicles with the 7 inch meter display

Perform the following steps to enable or disable the Automatic Emergency Braking with Pedestrian Detection system on your Nissan Sentra.

1. Press the button repeatedly until "Settings" appears in the vehicle information display of the Nissan Sentra.

Use the button to highlight "Driver Assistance," then press the OK button to confirm your selection.

2. Select "Emergency Brake" from the Driver Assistance menu and press the OK button.

3. Select "Front" and press the OK button to turn the Automatic Emergency Braking (AEB) with Pedestrian Detection system on or off.

When the AEB with Pedestrian Detection system on the Nissan Sentra is turned off, the AEB with Pedestrian Detection system warning light will illuminate in the vehicle information display.

NOTE:

• The AEB with Pedestrian Detection system will automatically be reactivated when the engine is restarted.
• The Intelligent Forward Collision Warning (I-FCW) system is integrated into the AEB with Pedestrian Detection system.
  There is no separate menu option for the I-FCW system in the vehicle information display. When the AEB system is turned off, the I-FCW system is also disabled.
• If the Vehicle Dynamic Control (VDC) system is turned off, the AEB with Pedestrian Detection system will not be available, except for the I-FCW function.

AEB with Pedestrian Detection system limitations

WARNING

Listed below are the system limitations for the Automatic Emergency Braking (AEB) with Pedestrian Detection system on the Nissan Sentra. Failure to operate the vehicle in accordance with these system limitations could result in serious injury or death.

• The AEB with Pedestrian Detection system on the Nissan Sentra cannot detect all vehicles or pedestrians in every driving situation or environment.
• The AEB with Pedestrian Detection system does not detect the following:
  • Pedestrians who are small in stature (for example, children), seated, operating toys or skateboards, riding scooters, using wheelchairs, or who are not in an upright standing or walking position.
  • Animals of any size.
  • Obstacles such as cargo, debris, or objects located on the roadway or roadside.
  • Oncoming vehicles or vehicles crossing the vehicle’s path.
  • Vehicles whose tires are difficult to see or whose rear shape is unclear, partially hidden, or obstructed.
  • Parked vehicles.
• The AEB with Pedestrian Detection system has inherent performance limitations:
  • If a stationary vehicle is directly in the Nissan Sentra’s path, the system will not operate when approaching that vehicle at speeds above approximately 50 mph (80 km/h).
  • Pedestrian detection will not operate when the Nissan Sentra is driven at speeds above approximately 37 mph (60 km/h) or below approximately 6 mph (10 km/h).
• For pedestrians, the AEB with Pedestrian Detection system will not provide the initial forward collision warning stage.
• The AEB with Pedestrian Detection system may not function properly or may fail to detect vehicles or pedestrians ahead under the following conditions:
  • Poor visibility conditions, including rain, snow, fog, dust storms, sand storms, smoke, or road spray from other vehicles.
  • Dirt, ice, snow, fog, or other contaminants covering the radar sensor area or the camera area on the windshield.
  • Strong light sources (such as direct sunlight or high beams) entering the front camera, or sudden changes in brightness (for example, entering a tunnel or during lightning).
  • Dark or dim lighting conditions, such as nighttime driving or tunnels, including situations where the Nissan Sentra’s headlights are off or dim, or the tail lights of the vehicle ahead are not illuminated.
  • When the camera alignment is incorrect or misaligned.
  • Driving on steep downhill slopes, roads with sharp curves, uneven surfaces, bumpy terrain, or dirt roads.
  • Interference caused by other radar-based systems nearby.
  • When the Nissan Sentra’s position or motion changes rapidly, such as during abrupt lane changes, sharp turns, sudden acceleration, or sudden deceleration.
  • When the vehicle or pedestrian ahead moves quickly or unpredictably, preventing the system from detecting and reacting in time (for example, a pedestrian stepping into the lane at close range, or a vehicle cutting in suddenly).
  • When the vehicle or pedestrian is offset from the Nissan Sentra’s forward driving path.
  • When the speed difference between the Nissan Sentra and the vehicle ahead is minimal.
  • When the pedestrian’s shape or outline is partially obscured or difficult to identify, such as when carrying luggage, pushing a stroller, wearing bulky or loose clothing, accessories, or adopting unusual postures (for example, raised arms).
  • When there is insufficient visual contrast between the pedestrian and the background, such as clothing colors that blend into the surroundings.
  • For approximately 15 seconds after the engine is started.
  • If the vehicle ahead has an unusual shape, very low or high ground clearance, irregular cargo loading, or is particularly narrow (for example, a motorcycle).
  • When the vehicle or pedestrian is located near reflective surfaces, traffic signs, water on the roadway, or within strong shadows.
  • When multiple pedestrians are grouped closely together.
  • When the pedestrian’s view is blocked by another vehicle or object.
• The system performance may be reduced under the following conditions:
  • Driving the Nissan Sentra on slippery road surfaces.
  • Driving on inclines or slopes.
  • When excessive or unevenly distributed cargo is loaded in the rear seat or cargo area.
• The AEB with Pedestrian Detection system is designed to automatically monitor the functionality of its radar and camera sensors within certain limits. However, some types of obstructions affecting the sensor area may not be detected by the system.

WARNING

Listed below are additional system limitations for the AEB with Pedestrian Detection system on the Nissan Sentra. Failure to operate the vehicle in accordance with these system limitations could result in serious injury or death.

• The AEB with Pedestrian Detection system may react to the following:
  • Objects located along the roadside, such as traffic signs, guardrails, pedestrians, motorcycles, vehicles, or similar structures.
  • Pedestrians encountered while driving through narrow streets, alleys, or confined roadways.
  • Pedestrians who temporarily enter or approach the driving lane in order to avoid obstacles along the road shoulder.
  • Objects positioned above the roadway, such as low bridges or overhead traffic signs.
  • Objects embedded in or lying on the road surface, including railroad tracks, drainage grates, or steel plates.
  • Structural objects within parking garages, such as beams, pillars, or supports.
  • Pedestrians or motorcycles approaching the traveling lane.
  • Vehicles, pedestrians, motorcycles, or objects traveling in adjacent lanes or positioned very close to the Nissan Sentra.
  • Oncoming pedestrians.
  • Objects located directly on or near the roadway, such as trees.
• Braking distances may increase significantly when driving on slippery road surfaces.
• Excessive interior or exterior noise may interfere with the warning chime, and the audible alert may not be heard by the driver.

System temporarily unavailable

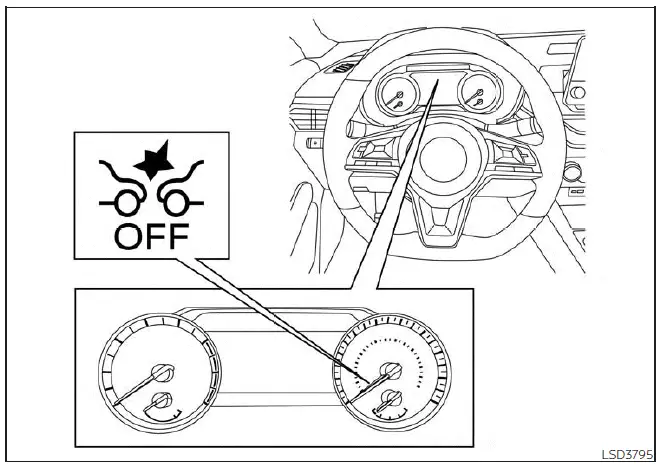

For vehicles with the 7 inch meter display

Condition A:

Under the following conditions, the AEB with Pedestrian Detection system warning light will blink and the system will automatically deactivate:

• Interference detected by the radar sensor from another radar-based source.
• The camera area on the windshield is fogged, misted, or frozen.
• Strong light is shining directly toward the front of the vehicle.
• The cabin temperature exceeds approximately 104ºF (40ºC) while parked in direct sunlight.
• The camera area on the windshield remains continuously covered with dirt or other contaminants.

Action to take

Once the conditions listed above are resolved, the AEB with Pedestrian Detection system on the Nissan Sentra will automatically resume normal operation.

NOTE:

If the inside surface of the windshield in the camera area is fogged or frozen, additional time may be required for it to clear after the air conditioning system is activated. If dirt or residue remains in this area, it is recommended that you visit a NISSAN dealer for proper inspection and cleaning.

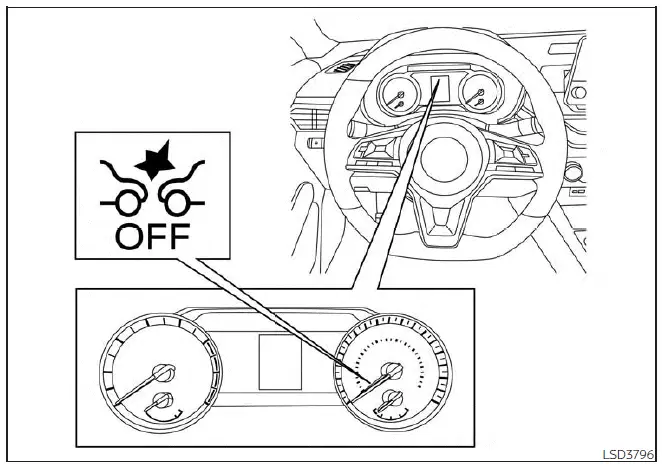

For vehicles with the 4.2 inch meter display

Condition B:

When adverse weather conditions such as rain, fog, or snow obstruct the front radar sensor, the AEB with Pedestrian Detection system will be canceled automatically. An audible chime will sound, the warning message "Forward Driving Aids Temporarily Disabled Front Sensor Blocked: See Owner's Manual" or "Driving Aids Temporarily Disabled Front Sensor Blocked: See Manual" will appear in the vehicle information display, and the system warning light will blink.

Action to take:

After the above conditions are no longer present, the warning message will disappear from the vehicle information display. If the warning message continues to appear, have the system inspected. It is recommended that you visit a NISSAN dealer to ensure proper operation of the AEB with Pedestrian Detection system on your Nissan Sentra.

Condition C:

When the front bumper radar sensor is covered by mud, dirt, snow, ice, or other contaminants, or if the sensor area is otherwise obstructed, the Automatic Emergency Braking (AEB) with Pedestrian Detection system on the Nissan Sentra will be automatically canceled to prevent inaccurate operation.

An audible chime will sound, and the warning message “Forward Driving Aids Temporarily Disabled Front Sensor Blocked: See Owner's Manual” or “Driving Aids Temporarily Disabled Front Sensor Blocked: See Manual” will appear in the vehicle information display. At the same time, the AEB with Pedestrian Detection system warning light will blink to alert the driver.

Action to take:

If the warning message appears, stop the Nissan Sentra in a safe location, place the shift lever in the P (Park) position, and turn the engine off. If the radar signal has been temporarily interrupted, carefully clean the sensor area on the front bumper and restart the engine. If the warning message continues to be displayed, have the system inspected. It is recommended that you visit a NISSAN dealer for this service.

Condition D:

When driving on roads with limited surrounding structures or environments—such as long bridges, desert areas, snowfields, or while traveling alongside long walls—the system may illuminate the system warning light and display the “Forward Driving Aids Temporarily Disabled Front Sensor Blocked: See Owner's Manual” or “Driving Aids Temporarily Disabled Front Sensor Blocked: See Manual” message. In these situations, the AEB with Pedestrian Detection system warning light will also blink.

Action to take:

Once the above driving conditions no longer exist, turn the AEB with Pedestrian Detection system back on to restore normal operation.

Condition E:

When the Vehicle Dynamic Control (VDC) system is turned OFF, the automatic braking function of the AEB with Pedestrian Detection system will not operate on the Nissan Sentra.

In this condition, only the visual and audible warnings will function, and the AEB with Pedestrian Detection system warning light (orange) will illuminate.

Action to take:

When the VDC system is turned back ON, the AEB with Pedestrian Detection system will automatically resume full operation.

NOTE:

If the AEB with Pedestrian Detection system stops operating, the Intelligent Forward Collision Warning (I-FCW) system will also stop operating.

System malfunction

If the AEB with Pedestrian Detection system malfunctions, it will automatically turn off. A chime will sound, the AEB with Pedestrian Detection system warning light (orange) will illuminate, and a [Malfunction] warning message will appear in the vehicle information display.

Action to take

If the warning light (orange) illuminates, stop the Nissan Sentra in a safe location, turn the engine off, and then restart the engine. If the warning light remains illuminated, have the AEB with Pedestrian Detection system checked. It is recommended that you visit a NISSAN dealer for this service.

System maintenance

The radar sensor is located at the front of the vehicle (B), and the camera is mounted on the upper portion of the windshield (A).

To ensure reliable operation of the AEB with Pedestrian Detection system on your Nissan Sentra, observe the following maintenance guidelines:

• Always keep the sensor areas on the front bumper/emblem and the windshield clean and free of debris.
• Do not strike, impact, or damage the areas around the sensors, such as the bumper or windshield.
• Do not cover the sensors with stickers or install accessories near them, as this may block sensor signals and cause improper operation or malfunction.
• Do not attach metallic objects near the radar sensor, such as brush guards, as this may interfere with system performance.
• Do not place reflective materials (for example, white paper or mirrors) on the instrument panel. Sunlight reflections may reduce the camera unit’s detection accuracy.
• Do not alter, remove, or paint the front bumper. Before performing any customization or repair, it is recommended that you visit a NISSAN dealer.

Radio frequency statement

For USA

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

FCC Warning

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

For Canada

This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference received, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.

L'exploitation est autorisée aux deux conditions suivantes:

1. L'appareil ne doit pas produire de brouillage, et

2. L'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Radio frequency radiation exposure information:

This equipment complies with FCC and Industry Canada radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum separation distance of 30 cm between the radiator and your body to ensure compliance with exposure guidelines.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Cet équipement est conforme aux limites d'exposition aux rayonnements d'Industrie Canada établies pour un environnement non contrôlé.

Cet équipement doit être installé et utilisé avec une distance minimale de 30 cm entre la source de rayonnement et votre corps.

FCC Notice

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
