Nissan Sentra B18 (2020-2025) Service Manual: Air Breather Hose

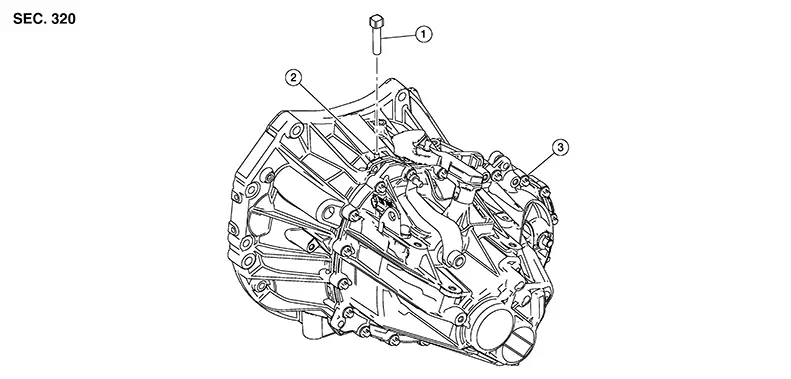

Exploded View
|
1. |
Air breather hose |
2. |
2 way connector |
3. |
Transaxle assembly |
Removal and Installation
REMOVAL
Remove air breather hose from the 2 way connector.
CAUTION:
When removing air breather hose, be sure to hold 2 way connector securely.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
-
Install air breather hose, preventing crush and clogging caused by bending.
-
Insert the allowance of air breather hose to the spool of the 2 way connector.
-
Securely engage the clips in the hole.
-
Do not reuse clip.
