Nissan Sentra Service Manual: Wiring diagram

Horn

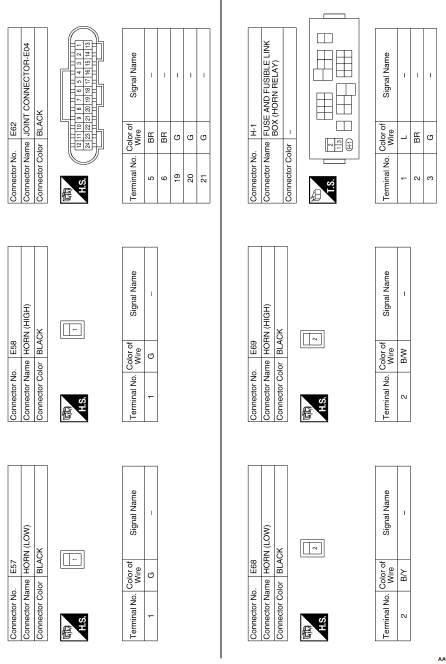

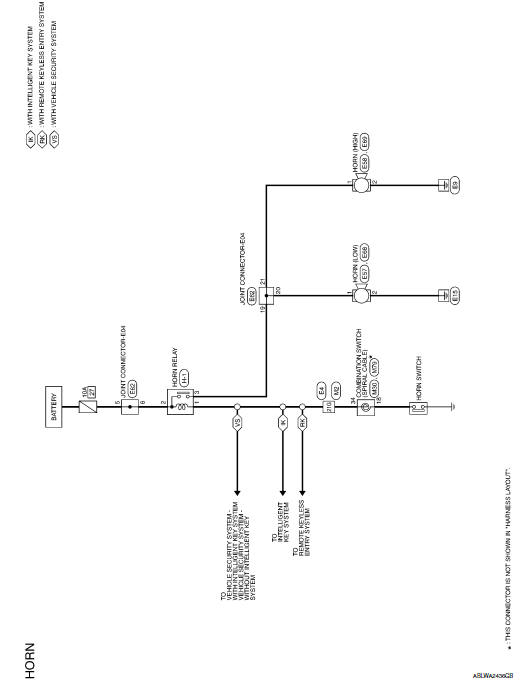

Wiring diagram



Removal and installation


Precaution
Precaution for supplemental restraint system (srs) "air bag" and "seat belt pre-tensioner" The supplemental restraint system such as “air bag” and “seat belt pre- ...

Removal and installation
Horn Exploded view Horn high Horn low Front Note: Shown with the front fascia removed for clarity. Removal and installation Horn low Removal Remove the core support cover. Ref ...
