Nissan Sentra Owners Manual: Vehicle identification number (VIN) plate

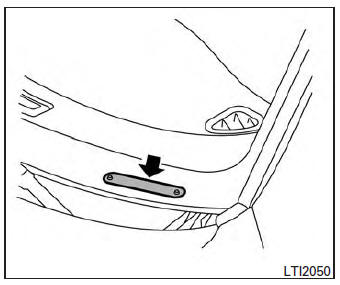

The vehicle identification number (VIN) plate is attached as shown. This number is the identification for your vehicle and is used in the vehicle registration.

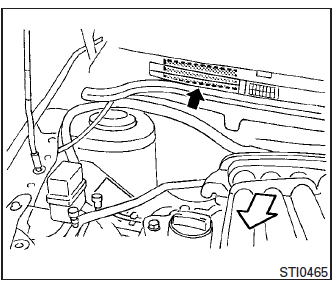

Vehicle identification number (chassis number)
The vehicle identification number is located as shown.

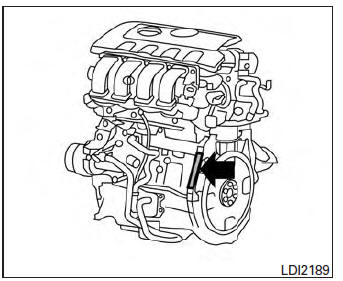

Engine serial number
The number is stamped on the engine as shown.
F.M.V.S.S./C.M.V.S.S. certification label
The Federal/Canadian Motor Vehicle Safety
Standard (F.M.V.S.S./C.M.V.S.S.) certification label
is affixed as shown. This label contains valuable
vehicle information, such as: Gross Vehicle
Wei ...
