Nissan Sentra Service Manual: Refrigerant

Description

CONNECTION OF SERVICE TOOLS AND EQUIPMENT


  1. Shut-off valve
  2. A/C service valve
  3. Recovery/recycling/recharging equipment
  4. Refrigerant container (HFC-134a)
  5. Weight scale (J-39650)
  6. Vacuum pump (J-39649)
  7. Manifold gauge set (J-39183)

  1. Preferred (best) method
  2. Alternative method
  3. For charging

Leak test

CHECK REFRIGERANT LEAKAGE USING FLUORESCENT LEAK DETECTION DYE

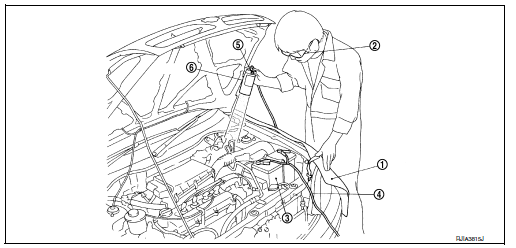

  1. Install a fender cover (1).
  2. Wear UV safety goggles (2) provided with refrigerant dye leak detection kit (J-43926).
  3. Connect power cable (4) of UV lamp (6) to positive and negative terminals of the battery (3).
  4. Press UV lamp switch (5) and check A/C system for refrigerant leakage. (Where refrigerant leakage occurs, fluorescent leak detection dye appears in green color.)

WARNING:

Do not look directly into UV lamp light source.

NOTE:

  1. Repair or replace parts where refrigerant leakage occurs and wipe off fluorescent leak detection dye.

NOTE:

Completely wipe off fluorescent leak detection dye from gaps between parts, screw threads, and others using a cotton swab or similar materials.

  1. Use a UV lamp to check that no fluorescent leak detection dye remains after finishing work.

WARNING:

Do not look directly into UV lamp light source.

NOTE:

CHECK REFRIGERANT LEAKAGE USING ELECTRICAL LEAK DETECTOR

WARNING:

Do not check refrigerant leakage while the engine is running.

CAUTION:

Be careful of the following items so that inaccurate checks or misidentifications are avoided.

  1. Stop the engine.
  2. Connect recovery/recycling/recharging equipment or manifold gauge set (J-39183-C) to A/C service valve.
  3. Check that A/C refrigerant pressure is 345 kPa (3.52 kg/cm2, 50 psi) or more when temperature is 16В°C (61В°F) or more. When pressure is lower than the specified value, recycle refrigerant completely and fill refrigerant to the specified level.

NOTE:

Leakages may not be detected if A/C refrigerant pressure is 345 kPa (3.52 kg/cm2, 50 psi) or less when temperature is less than 16В°C (61В°F).

  1. Clean area where refrigerant leakage check is performed and check refrigerant leakage along all surfaces of pipe connections and A/C system components using electrical leak detector (J-41995) probe.

CAUTION:

NOTE:

  1. Repair or replace parts where refrigerant leakage is detected. (Leakage is detected but leakage area is unknown.)
  2. Start the engine and set A/C control in the following conditions.
  1. Run the engine at approximately 1,500 rpm for 2 minutes or more.
  2. Stop the engine. Check again for refrigerant leakage. Go to step 4.

WARNING:

Be careful not to get burned when the engine is hot.

NOTE:

Recycle refrigerant


Recycle refrigerant

WARNING:

  1. Perform oil return operation. Refer to HA-25, "Perform Oil Return Operation". (If refrigerant or oil leakage is detected in a large amount, omit this step, and go to step 2.)

CAUTION:

Do not perform oil return operation if a large amount of refrigerant or oil leakage is detected.

  1. Check gauge pressure readings of recovery/recycling/recharging equipment. When remaining pressure exists, recycle refrigerant from high-pressure hose and low-pressure hose.

NOTE:

Follow manufacturer instructions for the handling or maintenance of the equipment. Do not fill the equipment with non-specified refrigerant.

  1. Remove A/C service valve cap from the vehicle.
  2. Connect recovery/recycling/recharging equipment to A/C service valve.
  3. Operate recovery/recycling/recharging equipment, and recycle refrigerant from the vehicle.
  4. Evacuate air for 10 minutes or more to remove any remaining refrigerant integrated to compressor oil, etc.
  5. Refrigerant recycle operation is complete.

Charge refrigerant

WARNING:

  1. Connect recovery/recycling/recharging equipment to the A/C service valve.
  2. Operate recovery/recycling/recharging equipment, and evacuate air from A/C system for 25 minutes or more.

CAUTION:

Evacuate air for 15 minutes or more if the parts are replaced.

  1. Check the airtightness of A/C system for 25 minutes or more. If pressure raises more than the specified level, charge A/C system with approximately 200g refrigerant and check that there is no refrigerant leakage.

    Refer to HA-21, "Leak Test".

CAUTION:

Check the airtightness for 15 minutes or more if the parts are replaced.

  1. If parts other than compressor are replaced, fill compressor oil according to parts that are replaced.
  2. Charge the specified amount of refrigerant to A/C system.
  3. Check that A/C system operates normally.
  4. Disconnect recovery/recycling/recharging equipment. (Collect the refrigerant from the high-pressure hose and low-pressure hose of recovery/recycling/recharging equipment.)
  5. Install A/C service valve cap.
  6. Refrigerant charge is complete.
Periodic maintenance
...

OIL
Description MAINTENANCE OF OIL LEVEL The compressor oil is circulating in the system together with the refrigerant. It is necessary to fill compressor with oil when replacing A/C system parts or ...
