Console box

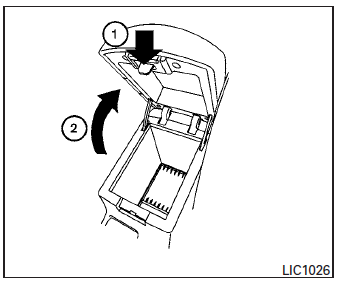

To open the console box, press in on the lever 1 and raise the lid 2 .
To close, push the lid down until the lock latches.

Glove box
Slide front armrest (if so equipped)Basic inspection
Diagnosis and repair work flow
Work flow
OVERALL SEQUENCE
DETAILED FLOW
1.GET INFORMATION FOR SYMPTOM
Get detailed information from the customer about the symptom (the
condition and the environment when
the incident/malfunction occurs).
Check operation condition of the function th ...
Diagnosis description : malfunction indicator lamp (MIL)
When emission-related ECU detects a malfunction in the emission
control systems components and/or the powertrain control components
(which affect vehicle emissions), it turns on/blinks MIL to
inform the driver that a malfunction has been detected.
The MIL illuminates when ignition switch is t ...
Component parts
Component parts location
Generator
IPDM E/R (view with air inlet duct removed)
ECM
Battery current sensor
Charge warning lamp indicator
Component description
Component part
Description
Generator (IC regulator)
The IC regulator controls the power generation ...
