Nissan Sentra Owners Manual: Air flow charts

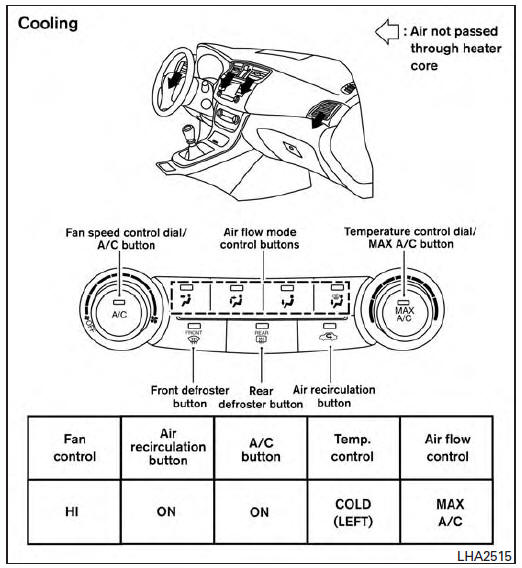

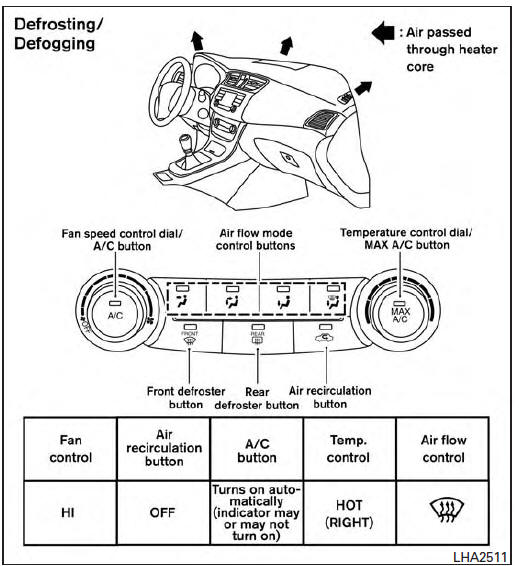

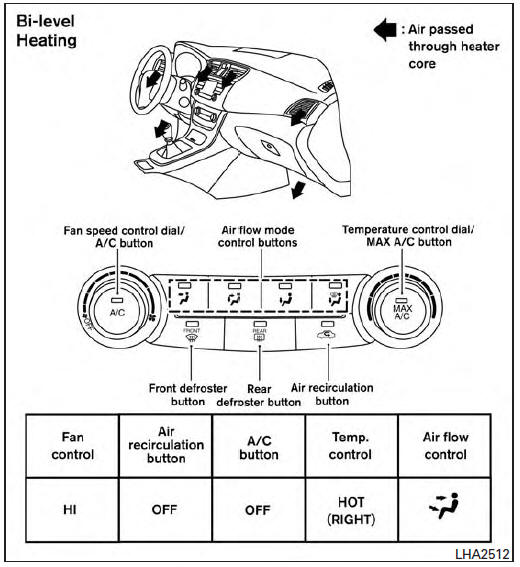

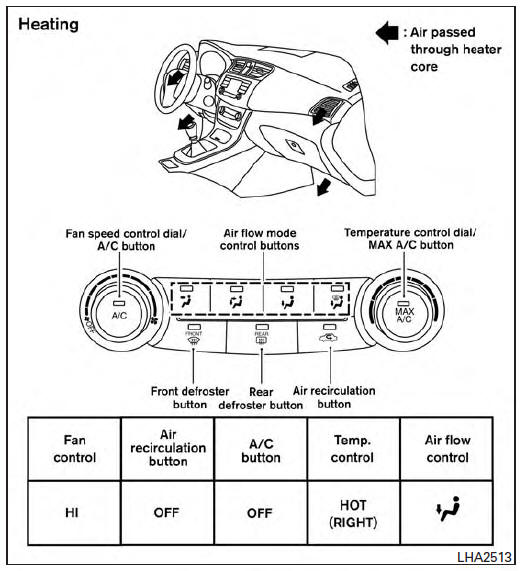

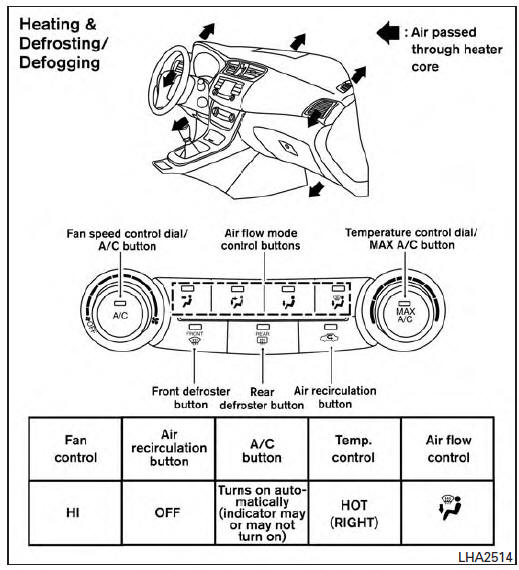

The following charts show the button and dial positions for MAXIMUM AND QUICK heating, cooling or defrosting. The air recirculation button should always be in the OFF position for heating and defrosting.
Air conditioner operation (if so equipped)
Start the engine, turn the fan control dial to the
desired position, and press the
button to
activate the air conditioner. When the air conditioner
is on, cooling and dehumidifying fu ...
Heater and air conditioner (automatic) (if so equipped)
Temperature control buttons (driver’s
side)
(front defroster) button
(rear window defroster)
button
Display screen
MODE (manual air flow control) button
Fresh air intake but ...
