Work Flow

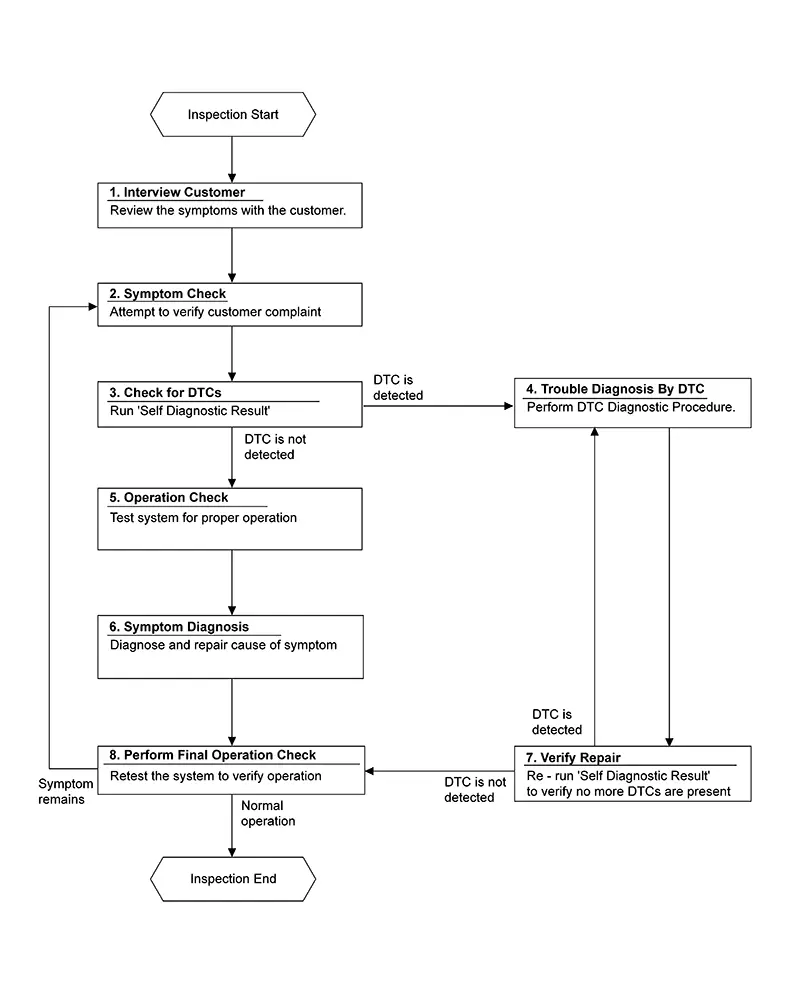

OVERALL SEQUENCE

DETAILED FLOW

INTERVIEW CUSTOMER
1. Interview the customer to obtain as much information as possible about the conditions and environment under which the malfunction occurred.
>>
GO TO 2.
SYMPTOM CHECK
1. Verify symptoms.
>>
GO TO 3.
CHECK FOR DTCS
1. CONSULT
  1. Ignition switch ON.
  2. Select “Self Diagnostic Result” mode of “HVAC”.
  3. Check DTC.
Is any DTC detected?
YES >>
GO TO 4.
NO >>
GO TO 5.
TROUBLE DIAGNOSIS BY DTC
1. Perform the diagnostic procedure for the detected DTC. Refer to DTC Index (auto A/C) or DTC Index (manual A/C).
>>
GO TO 7.
OPERATION CHECK
1. Perform the operation check. Refer to Work Procedure (auto A/C) or Work Procedure (manual A/C).
>>
GO TO 6.
SYMPTOM DIAGNOSIS
1. Check the symptom diagnosis table. Refer to Symptom Table.
>>
GO TO 8.
VERIFY REPAIR
1. CONSULT
  1. Ignition switch ON.
  2. Select “Self Diagnostic Result” mode of “HVAC”.
  3. Check DTC.
Is any DTC detected?
YES >>
GO TO 4.
NO >>
GO TO 8.
PERFORM FINAL OPERATION CHECK
1. Perform the operation check. Refer to Work Procedure (auto A/C) or Work Procedure (manual A/C).
Does it operate normally?
YES >>
Inspection End.
NO >>
GO TO 2.
