Nissan Sentra Service Manual: Under cover

Front under cover

Front under cover : removal and installation

REMOVAL

  1. Remove front side of front fender protector (LH/RH). Refer to EXT-28, "FENDER PROTECTOR : Removal and Installation - Front Fender Protector".
  2. Remove engine under cover. EXT-31, "ENGINE UNDER COVER : Removal and Installation"
  3. Remove front under cover bolts and clips.
  4. Slide front under cover toward vehicle front to release pawl.

: Pawl



  1. Pull toward the direction of the arrows as shown to remove front under cover.

INSTALLATION


INSTALLATION

Installation is in the reverse order of removal.

Engine under cover

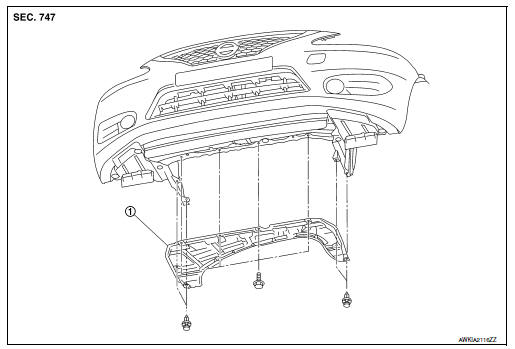

Engine under cover : exploded view


  1. Engine under cover

Engine under cover : removal and installation

REMOVAL

Remove engine under cover bolts, clips and engine under cover.

INSTALLATION

Installation is in the reverse order of removal.
