Nissan Sentra B18 (2020-2025) Service Manual: System (8ch Can Gateway)
System Description
8CH CAN GATEWAY

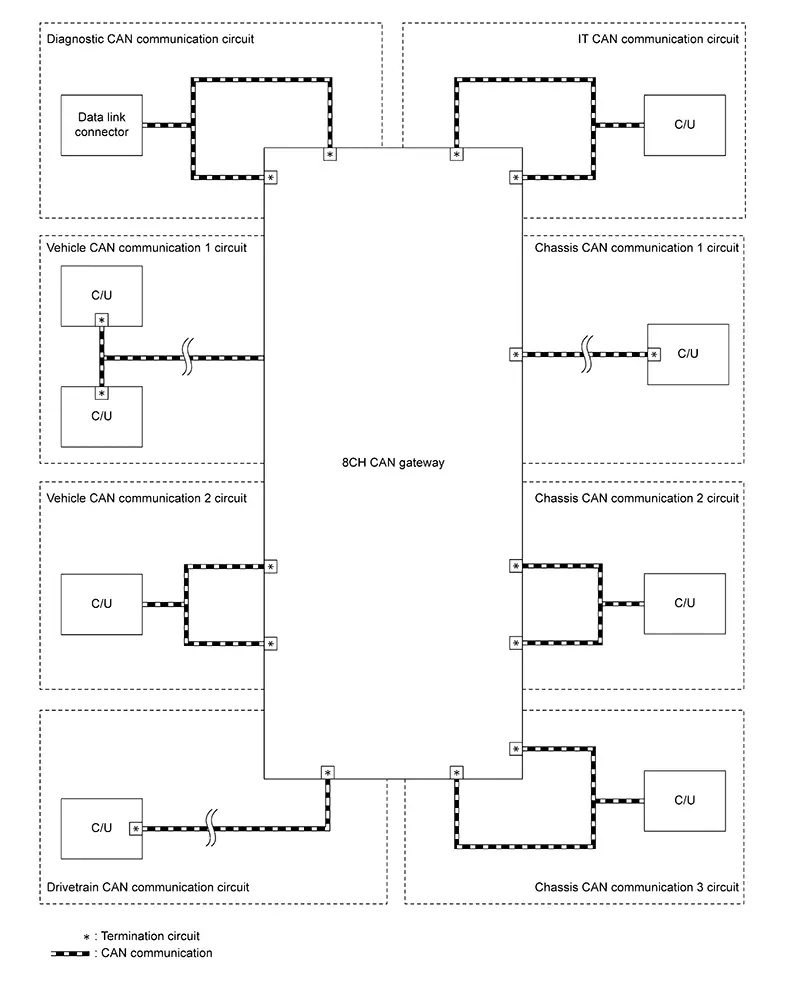

System Diagram
System Description
-
The 8CH CAN gateway system communicates between Nissan Sentra vehicle CAN communication circuits, chassis CAN communication circuits, IT CAN communication circuit, Drivetrain CAN communication circuit, and diagnostic CAN communication circuit.
-
This system selects and transmits only necessary information.
Component Parts (8ch Can Gateway)
Component Parts Location
Component Parts
Location
Behind the instrument panel
(view with inst ...
Diagnosis System (8ch Can Gateway)
Consult Function
CONSULT Function
APPLICATION ITEM
CONSULT performs the following functions via CAN communication
with 8CH CAN gateway.
...
