Nissan Sentra B18 (2020-2025) Service Manual: Component Parts (8ch Can Gateway)
Component Parts Location
|
|

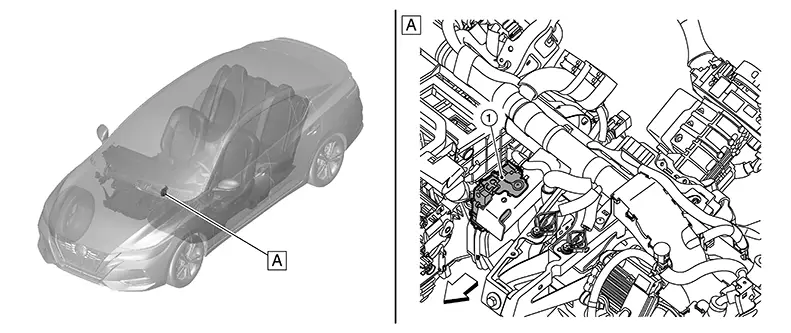

Behind the instrument panel (view with instrument panel assemble removed) |
|
|
Nissan Sentra Vehicle front |
|
No. |
Component |
Function |
|---|---|---|
|
1. |
8CH CAN gateway |
Refer to Component Description. |
Component Description
EXPLANATIONS OF COMPONENT PARTS
Component Function Within The System
—
Individual Component Function
8CH CAN gateway transmits CAN signals from each network.
Component Operation
Refer to System Description.
Component Parts Location
8CH CAN gateway is installed at behind the instrument panel. Refer to Component Parts Location.
Description
...
System (8ch Can Gateway)
System Description
System Description
8CH CAN GATEWAY
System Diagram
System Description
The 8CH CAN gateway system communicates between Nissan Sentra vehicle
CAN comm ...
