System Diagram
FRONT POWER WINDOW LH ANTI-PINCH SYSTEM
System Description
MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH INPUT/OUTPUT SIGNAL CHART
Item | Input signal to main power window and door lock/unlock switch | Main power window and door lock/unlock switch function | Actuator |
Encoder | Encoder pulse signal | Power window control | Front power window motor |
Main power window and door lock/unlock switch | Front power window motor LH UP/ DOWN signal | ||
Power window and door lock/unlock switch RH | Front power window motor RH UP/ DOWN signal | ||
BCM | RAP signal | Rear power window motor | |
Rear power window switch | Rear power window motor UP/DOWN signal |
POWER WINDOW OPERATION
POWER WINDOW AUTO-OPERATION (FRONT LH)
RETAINED POWER OPERATION
Retained power function cancel conditions
POWER WINDOW LOCK FUNCTION
Ground circuit inside main power window and door lock/unlock switch shuts off when power window lock switch is ON. This inhibits power window switch operation except with the main power window and door lock/ unlock switch.
ANTI-PINCH OPERATION (FRONT LH)
OPERATION CONDITION
NOTE:
Depending on environment and driving conditions, if a similar impact or load is applied to the door glass, it may lower.
Fail-safe
FAIL-SAFE CONTROL
Switches to fail-safe control when malfunction is detected in the encoder signal that detects UP/DOWN speed and direction of door glass. Switches to fail-safe control when an error beyond the regulation value is detected between the fully closed position and the actual position of the glass.
Malfunction | Malfunction condition |
Pulse sensor malfunction | When only one side of pulse signal is being detected for more than the specified value. |
Both pulse sensors malfunction | When both pulse signals have not been detected for more than the specified value during glass open/close operation. |
Pulse direction malfunction | When the pulse signal that is detected during glass open/close operation detects the opposite condition of power window motor operating direction. |
Glass recognition position malfunction 1 | When it detects the error between glass fully closed position in power window switch memory and actual fully closed position during glass open/close operation is more than the specified value. |
Glass recognition position malfunction 2 | When it detects pulse count more that the value of glass full stroke during glass open/close operation. |
Malfunction of not yet updated closed position of glass | When glass open/close operation is continuously performed without fully closing more that the specified value (approximately 10 strokes). |
It changes to condition before initialization and the following functions do not operate when switched to failsafe control:
Perform initial operation to recover when switched to fail-safe mode. However, it switches back to fail-safe control when malfunction is found in power window switch or in motor.
Diagnosis system (bcm) (with intelligent key system)
Common item
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)
APPLICATION ITEM

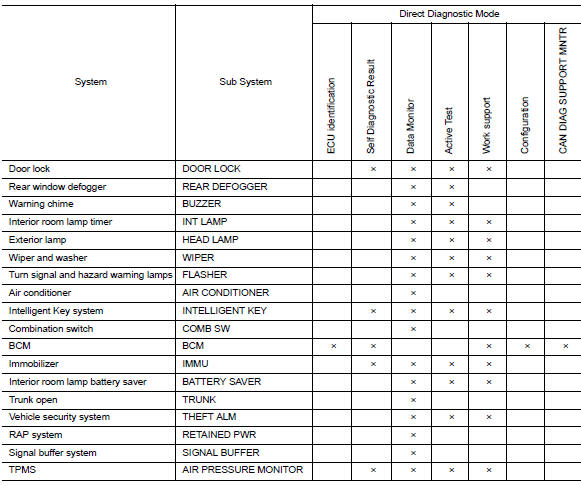

CONSULT performs the following functions via CAN communication with BCM.
Direct Diagnostic Mode | Description |
ECU identification | The BCM part number is displayed. |
Self Diagnostic Result | The BCM self diagnostic results are displayed. |
Data Monitor | The BCM input/output data is displayed in real time. |
Active Test | The BCM activates outputs to test components. |
Work support | The settings for BCM functions can be changed. |
Configuration |
|
CAN DIAG SUPPORT MNTR | The result of transmit/receive diagnosis of CAN communication is displayed. |
SYSTEM APPLICATION
BCM can perform the following functions.
Retained pwr
RETAINED PWR : CONSULT Function (BCM - RETAINED PWR)
DATA MONITOR
Diagnosis system (bcm) (without intelligent key system)
Common item
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)
APPLICATION ITEM

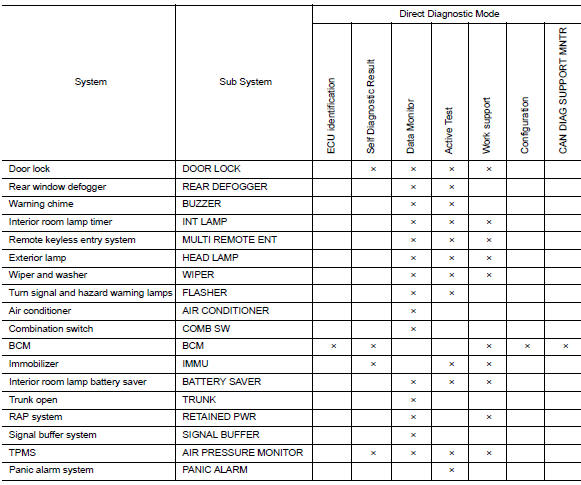

CONSULT performs the following functions via CAN communication with BCM.
Direct Diagnostic Mode | Description |
ECU identification | The BCM part number is displayed. |
Self Diagnostic Result | The BCM self diagnostic results are displayed. |
Data Monitor | The BCM input/output data is displayed in real time. |
Active Test | The BCM activates outputs to test components. |
Work support | The settings for BCM functions can be changed. |
Configuration |
|
CAN DIAG SUPPORT MNTR | The result of transmit/receive diagnosis of CAN communication is displayed. |
SYSTEM APPLICATION
BCM can perform the following functions.
Retained pwr
RETAINED PWR : CONSULT Function (BCM - RETAINED PWR)
DATA MONITOR
WORK SUPPORT
*: Initial setting
Dtc/circuit diagnosis
Power supply and ground circuit
Audio unit
AUDIO UNIT : Diagnosis Procedure
Regarding wiring diagram information, refer to av-88, "wiring diagram".
1.Check fuse
Check that the following fuses are not blown.
Are the fuses blown?
Yes >> replace the blown fuse after repairing ...
Push-button ignition switch illumination circuit
Description
Provides the power supply and the ground to control the push-button ignition
switch illumination.
Component function check
1.Check push-button ignition switch illumination operation
Consult active test
Turn the ignition switch ON.
Select engine sw illumi of bcm (intelligen ...
