Nissan Sentra B18 (2020-2025) Service Manual: Starting System (with Cvt)

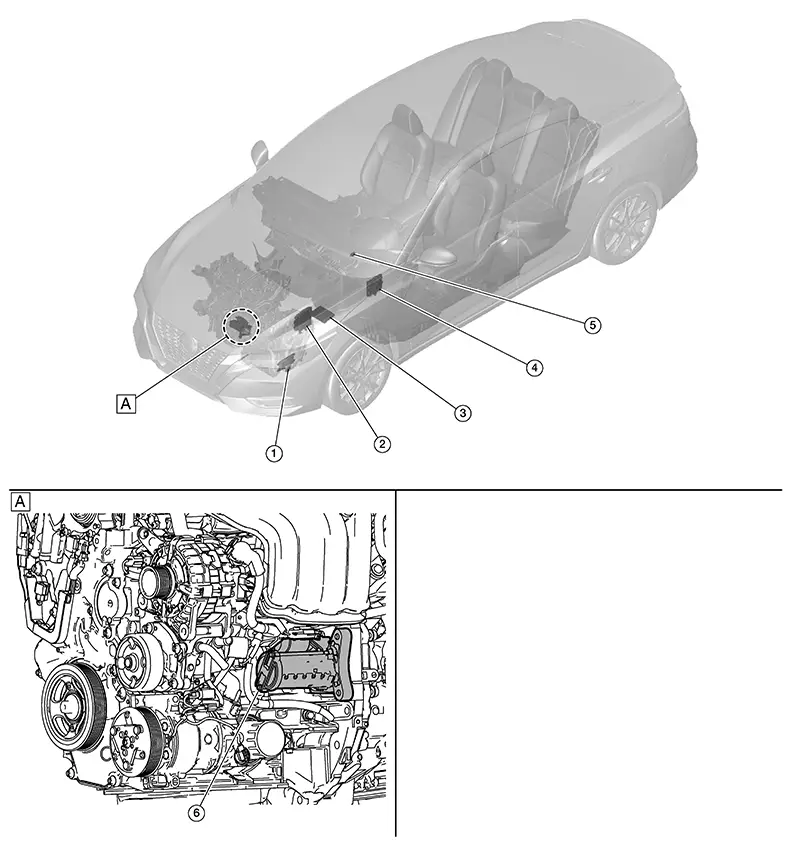

Component Parts Location
|
A. |
View with engine removed. |
|
No. |
Component |
Function |
|---|---|---|
|
1. |
TCM (Transmission Control Module) |
Refer to Component Parts Location for detailed component location. |
|
2. |
ECM (Engine Control Module) |
Refer to Component Parts Location for detailed component location. |
|
3. |
IPDM E/R (Intelligent Power Distribution Module Engine Room) |
CPU inside IPDM E/R operates the starter cut relay when the ignition switch is in the start position. Refer to System Description. |
|
4. |
BCM (Body Control Module) |
BCM controls the starter relay inside the IPDM E/R. Refer to System Description. |
|
5. |
Start/Stop off switch |
Supplies start/stop off switch status to the BCM. |
|
6. |
Starter motor |
Refer to Starter Motor. |
Component Parts
...
Starting System (with M/t)
Component Parts Location
Component Parts
Location
A.
View with engine removed.
...
