Nissan Sentra B18 (2020-2025) Owner's Manual: Seats

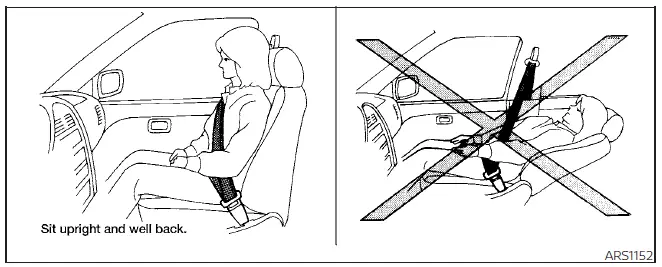

Nissan Sentra front and rear seats layout and adjustment overview

This section describes the seat design and adjustment features of the Nissan Sentra, helping drivers and passengers achieve a safe, comfortable, and ergonomically correct seating position.

WARNING

  • Do not ride in a moving Nissan Sentra when the seatback is reclined. This is extremely dangerous because the shoulder belt will not rest properly against your body. In the event of a collision, you may be thrown forward and suffer serious neck or other injuries.

    You may also slide under the lap belt, which can result in severe internal injuries.

  • For maximum protection while the Nissan Sentra is in motion, the seatback should remain upright. Always sit well back in the seat with both feet on the floor and adjust the seat correctly. For more details, refer to “Precautions on seat belt usage”.
  • After adjusting the seat, gently rock it to confirm that it is securely locked in place.
  • Do not leave children unattended inside the vehicle. Children may accidentally activate switches or controls, or cause the vehicle to move, which can lead to serious accidents.
  • To reduce the risk of injury or death caused by unintended vehicle operation, never leave children, individuals requiring assistance, or pets unattended in your Nissan Sentra. On warm days, the temperature inside a closed vehicle can rise rapidly and become life-threatening.
  • Do not adjust the driver’s seat while driving. Sudden seat movement may cause loss of vehicle control and increase the risk of an accident.
  • The seatback should not be reclined more than necessary for comfort.

    Seat belts are most effective when occupants sit upright and well back in the seat. Reclining the seatback increases the risk of sliding under the lap belt and sustaining injuries.

CAUTION

When adjusting the seat position, ensure that no moving parts are contacted to avoid possible injury or damage to the seat mechanism.

Front manual seat adjustment

The Nissan Sentra may be equipped with manually adjustable front seats designed to provide reliable positioning and support.

For detailed seat adjustment procedures, follow the instructions provided in this section.

Nissan Sentra manual seat adjustment controls forward and backward

Forward and backward

Pull up and hold the center of the adjustment bar while sliding the seat forward or backward to the desired position. Release the bar to securely lock the seat in place.

Nissan Sentra manual seatback recline lever operation

Reclining

To recline the seatback, pull the lever upward and lean back. To return the seatback to an upright position, pull the lever and lean forward. Release the lever to lock the seatback securely.

The reclining feature allows the Nissan Sentra seatback to be adjusted for occupants of different sizes, improving comfort and ensuring proper seat belt fit. When the vehicle is parked, the seatback may also be reclined to allow occupants to rest.

Nissan Sentra driver seat height adjustment lever

Seat lifter (driver's seat)

Pull up or push down the adjustment lever to raise or lower the driver’s seat until the desired height is achieved.

Front power seat adjustment

Operating tips

  • The power seat motor includes an automatic reset overload protection feature. If the motor stops during operation, wait approximately 30 seconds before using the switch again.
  • Avoid operating the power seat adjustment switch for extended periods when the engine is off, as this may discharge the battery.

Nissan Sentra power seat forward and backward switch

Forward and backward

Move the power seat switch as shown to slide the seat forward or backward to the desired position.

Nissan Sentra power seat recline switch

Reclining

Move the recline switch until the desired seatback angle is reached.

This feature allows improved comfort and correct seat belt positioning for Nissan Sentra occupants. The seatback may also be reclined when the vehicle is parked to allow occupants to rest.

Nissan Sentra power seat height adjustment switch

Seat lifter

Operate the switch as shown to raise or lower the seat cushion height.

Nissan Sentra seat adjustment controls complete view

Lumbar support

The lumbar support feature in the Nissan Sentra is designed to provide adjustable lower back support for the driver, helping to reduce fatigue and improve comfort during long or daily drives.

Push the switch as shown to increase or decrease support in the seatback lumbar area until a comfortable and properly supported driving position is achieved.

Folding rear seat

Nissan Sentra folding rear seatback release and cargo access

Pull knob A to fold each rear seatback down. This feature allows the Nissan Sentra to accommodate longer or bulkier cargo when additional luggage space is required.

WARNING

  • Never allow anyone to ride in the cargo area or on the rear seat when it is in the folded-down position. Passengers without proper seating and restraints are at serious risk of injury or death in the event of a collision or sudden stop.
  • Always secure all cargo using ropes or straps to prevent it from sliding or shifting. Do not stack cargo higher than the seatbacks. Unsecured cargo may cause serious personal injury during hard braking or an accident.
  • When returning the rear seatbacks to the upright position, make sure they are fully latched and locked. Improperly secured seatbacks can result in passenger injury during a sudden stop or collision.
  • Closely supervise children around vehicles at all times. Prevent children from playing inside the Nissan Sentra or becoming trapped in the trunk, where serious injury could occur. Always keep the vehicle locked, with the rear seatbacks and trunk lid securely latched, and store car keys out of children's reach.

Armrest

Nissan Sentra rear seat armrest folded down

The rear bench seat of the Nissan Sentra is equipped with a convenient center armrest. Pull the armrest down as shown to provide added comfort for rear-seat passengers.

    Head restraints/headrests
    WARNING Head restraints/headrests in the Nissan Sentra are designed to supplement other vehicle safety systems. When properly adjusted, they may provide additional protection ag...
