Nissan Sentra B18 (2020-2025) Service Manual: Satellite Antenna

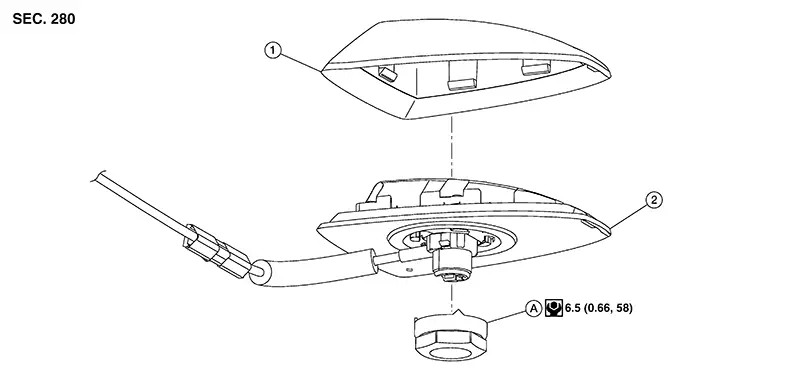

Exploded View
|
1. |
Outer cover |
2. |
Satellite antenna |
A. |
Satellite antenna nut |
Removal and Installation
REMOVAL
Remove headlining. Refer to Removal and Installation.
Disconnect harness connectors from satellite antenna.
Remove nut from satellite antenna and remove.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
If the satellite antenna nut is not properly tightened, lower sensitivity of the antenna may be experienced. If the nut is over tightened, this will deform the roof panel.
Disassembly and Assembly
Disassembly
Remove satellite antenna. Refer to Removal and Installation.
Using a
suitable tool, release pawls and remove outer cover (1) from
satellite antenna (2).
Assembly
Assembly is in the reverse order of disassembly.
