Nissan Sentra B18 (2020-2025) Service Manual: Removal and Installation
REMOVAL
Remove front bumper fascia. Refer to Removal and Installation.
Remove ambient sensor. Refer to Removal and Installation.

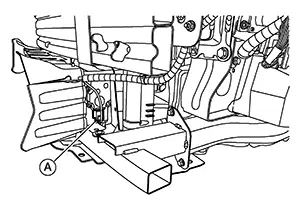

Disconnect
harness connector (A).

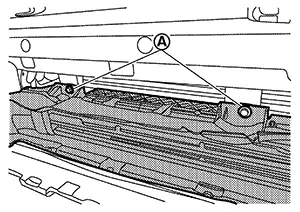

Remove
clips (A).

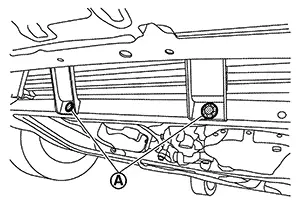

Remove
bolts (A) and active grille shutter.
INSTALLATION
Installation is in the reverse order of removal.
Exploded View
Exploded View
1.
Active grille shutter
...
Fender Protector
...
