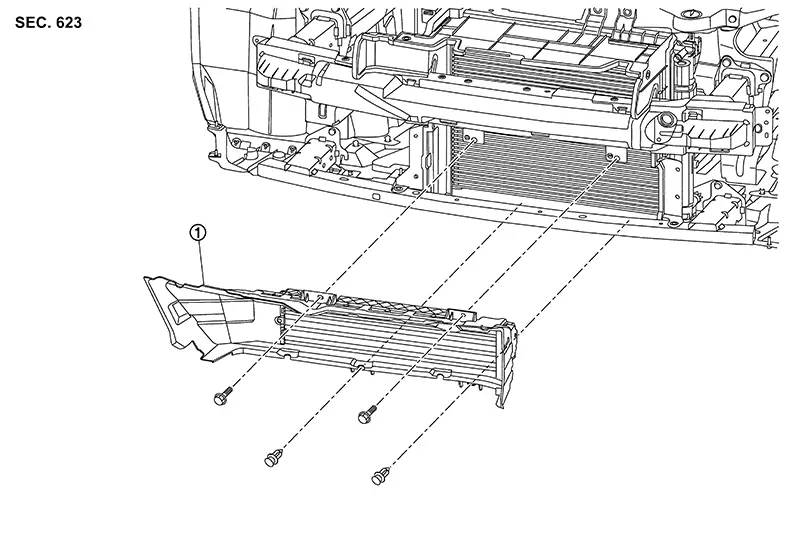

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Active grille shutter |
Removal and Installation
Removal and Installation
REMOVAL
Remove
front bumper fascia. Refer to Removal and Installation.
Remove
ambient sensor. Refer to Removal and Installation.
Disconnect
harness co ...
