Nissan Sentra B18 (2020-2025) Service Manual: Removal and Installation
REMOVAL
Using a
suitable tool, release pawls to detach cluster lid A (1) from
steering column upper cover (2).
:
Pawl

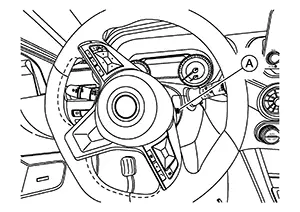

Remove the
steering column upper cover and steering column lower cover screws
(A).
Note:
RH shown; LH similar
Remove steering column upper cover and steering column lower cover.
INSTALLATION
Installation is in the reverse order of removal.
