Nissan Sentra B18 (2020-2025) Service Manual: Removal and Installation
REMOVAL
Remove rear seatback. Refer to Removal and Installation.
Remove LATCH bracket bolts and remove LATCH bracket.
INSTALLATION

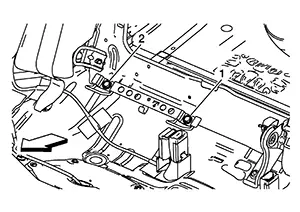

Install and
tighten LATCH bracket bolts to specification in the sequence
shown:
|
LATCH bracket bolts |
: 50 N·m (5.1 kg-m, 37 ft-lb) |
|
|
: Front |
RH side shown, LH side similar
-
Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to Inspection.
Exploded View
Exploded View
1.
LATCH bracket (LH/RH)
A.
...
