Nissan Sentra B18 (2020-2025) Service Manual: Rear Under Cover

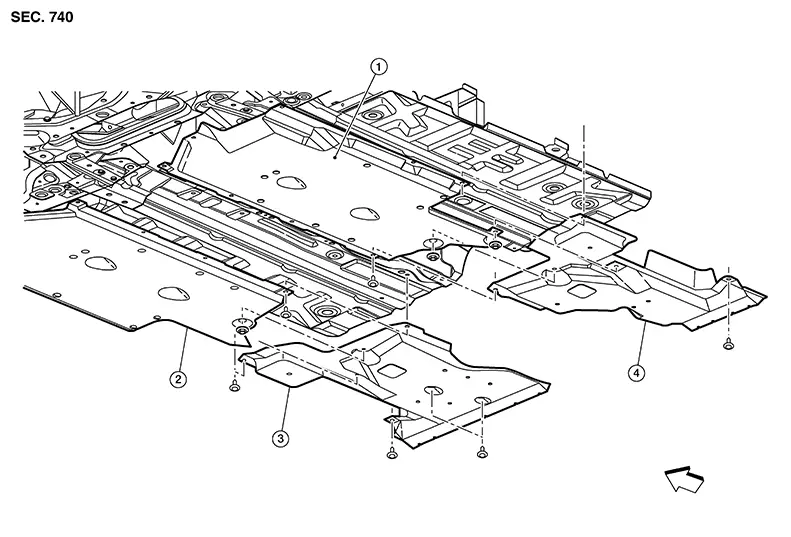

Exploded View
|
1. |
Floor under cover LH |
2. |
Floor under cover RH |
3. |
Rear under cover RH |
|
4. |
Rear under cover LH |
|
Front |
Removal and Installation
REMOVAL
Remove clips and nuts from rear edge of floor under cover. Refer to Exploded View.
Remove rear under cover clips. Refer to Exploded View.
Remove rear under cover.
INSTALLATION
Installation is in the reverse order of removal.
Floor Under Cover
Exploded View
Exploded View
1.
Front under cover
2.
...
Sill Cover
...
