Nissan Sentra B18 (2020-2025) Service Manual: Floor Under Cover

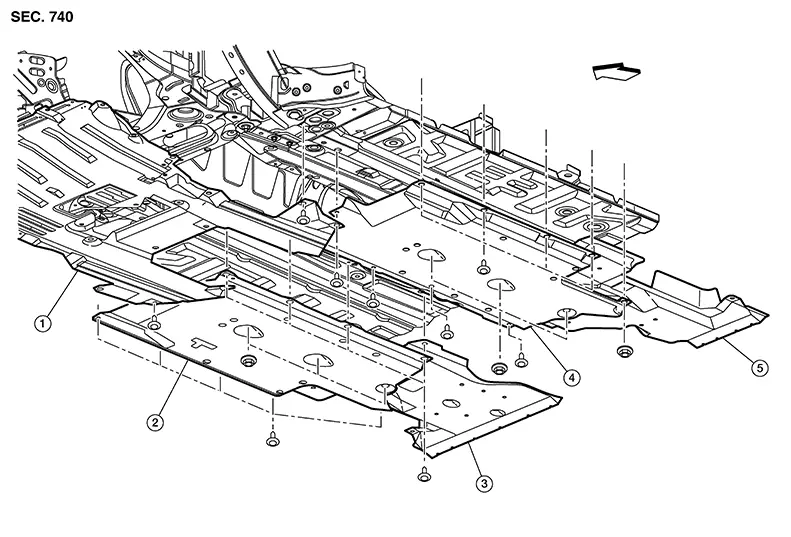

Exploded View
|
1. |
Front under cover |
2. |
Floor under cover RH |
3. |
Rear under cover RH |
|
4. |
Floor under cover LH |
5. |
Rear under cover LH |
|
Front |
Removal and Installation
REMOVAL
Remove clips from rear edge of front under cover. Refer to Exploded View.
Remove floor under cover clips and nuts. Refer to Exploded View.
Remove floor under cover.
INSTALLATION
Installation is in the reverse order of removal.
Front Under Cover
Exploded View
Exploded View
1.
Front under cover
2.
...
Rear Under Cover
Exploded View
Exploded View
1.
Floor under cover LH
...
