Nissan Sentra B18 (2020-2025) Service Manual: Front Under Cover

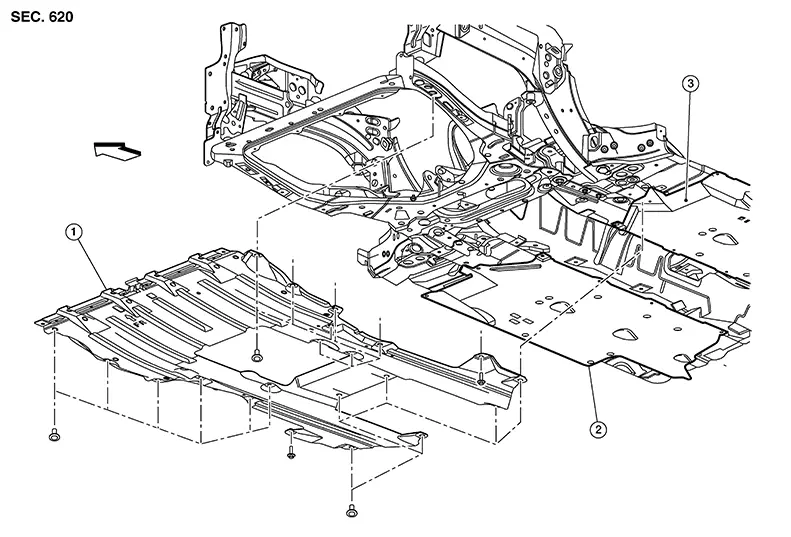

Exploded View
|
1. |
Front under cover |
2. |
Floor under cover RH |
3. |
Floor under cover LH |
|
|
Front |
Removal and Installation
REMOVAL
Remove apron bracket. Refer to Removal and Installation.
Remove front under cover bolts and clips. Refer to Exploded View.
Remove front under cover.
INSTALLATION
Installation is in the reverse order of removal.
