Nissan Sentra B18 (2020-2025) Service Manual: Plug

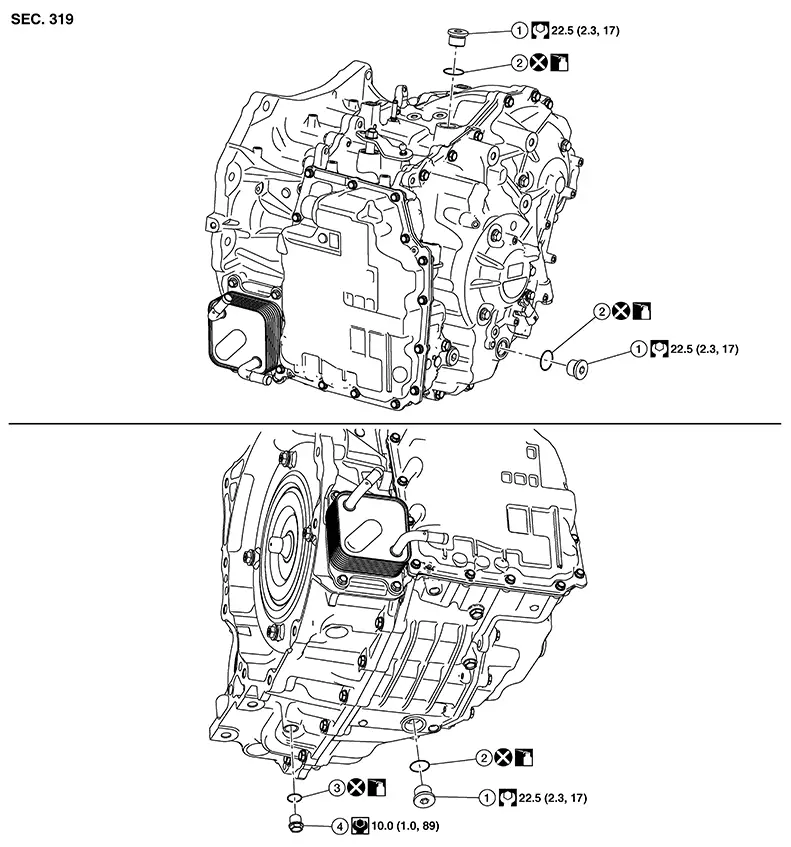

Exploded View

Exploded View

1.

Plug

2.

O-ring

3.

O-ring

4.

Overflow plug



Removal and Installation

Removal and Installation

REMOVAL

Remove front under cover. Refer to Removal and Installation.

Remove the plug and O-ring.

CAUTION:

Do not reuse O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

  • Do not reuse O-ring.

  • Apply CVT fluid to O-ring.

Inspection and Adjustment

Inspection and Adjustment

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to Adjustment.
