Toyota Camry Owner's Manual (2023): Parking Support Brake function (static objects)

Toyota Camry Owner's Manual (2023) / Driving / Using the driving support systems / Parking Support Brake function (static objects)

If a collision with an object may occur due to the vehicle suddenly moving forward due to an accidental accelerator pedal operation, the vehicle moving the unintended direction due to the wrong shift position being selected, or while parking or traveling at low speeds, the sensors detect objects, such as a wall, in the traveling direction of the vehicle, and the system operates to lessen an impact with an object and reduce the resulting damage.

Examples of system operation

The system will operate in situations such as the following if an object is detected in the traveling direction of the vehicle.

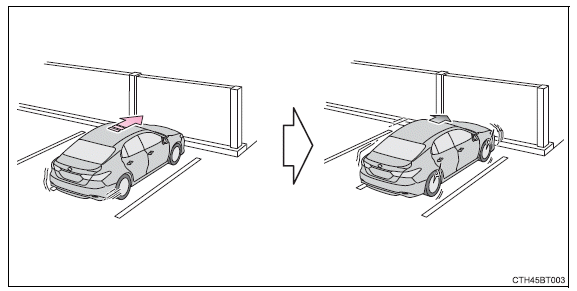

■ When traveling at a low speed and the brake pedal is not depressed, or is depressed late

Using the driving support systems

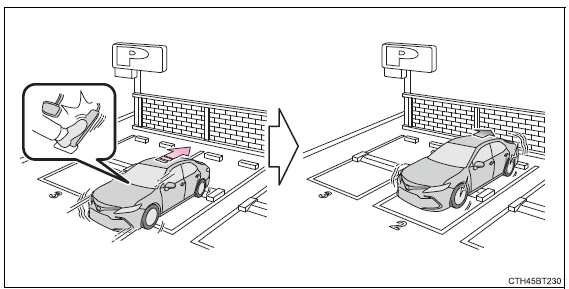

■ When the accelerator pedal is depressed excessively

Using the driving support systems

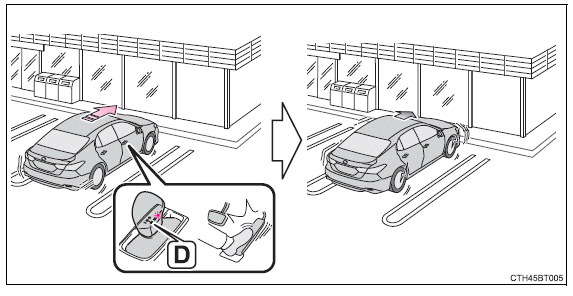

■ When the vehicle moves in the unintended direction due to the wrong shift position being selected

Using the driving support systems

■The Parking Support Brake function (static objects) will operate when

The function will operate when the PKSB OFF indicator is not illuminated

■The Parking Support Brake function (static objects) will stop operating when

The function will stop operating if any of the following conditions are met:

■Detection range of the Parking Support Brake function (static objects)

The detection range of the Parking Support Brake function differs from the detection range of the intuitive parking assist.

Therefore, even if the intuitive parking assist detects an object and provides a warning, the Parking Support Brake function may not start operating.

Parking Support Brake function - PKSB (Parking Support Brake)
If the Parking Support Brake detects that a collision with an object is possible, the engine output will be restricted to restrain any increase in the vehicle speed. (Engine output restriction contr ...

Parking Support Brake function (rear-crossing vehicles)
If a radar sensor detects a vehicle approaching from the right or left at the rear of the vehicle and the system determines that the possibility of a collision is high, this function will perform br ...
