Nissan Sentra B18 (2020-2025) Service Manual: Parking Brake Control

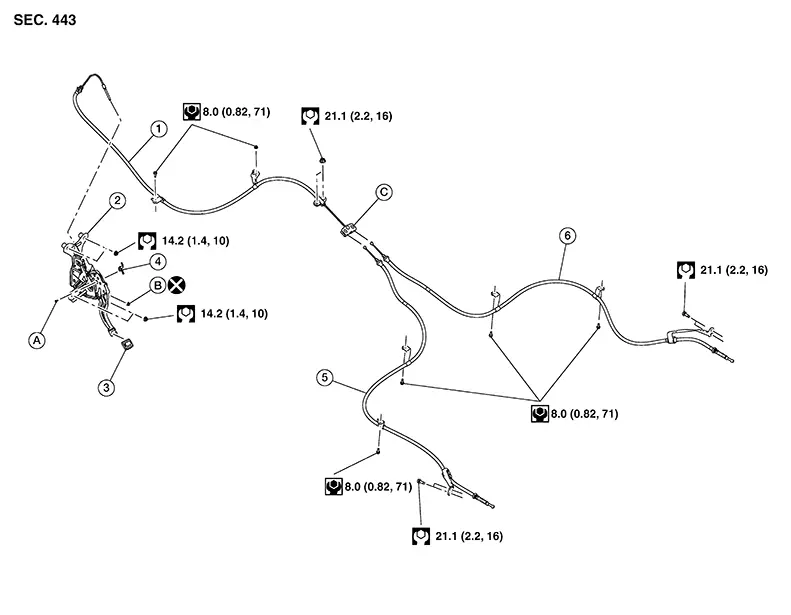

Exploded View
|
1. |
Front parking brake cable |
2. |
Parking brake pedal assembly |
3. |
Pedal pad |
|
4. |
Parking brake switch |
5. |
Rear parking brake cable (LH) |
6. |
Rear parking brake cable (RH) |
|
A. |
Screw |
B. |
Adjusting nut |
C. |
Equalizer |
Removal and Installation
REMOVAL
Remove the left knee air bag module. Refer to Removal and Installation.
Remove the center console assembly. refer to Removal and Installation.
Disconnect the harness connector from the parking brake switch.
Remove
adjusting nut (A) from the front parking brake cable.
CAUTION:
Do not reuse adjusting nut after removing it.
Remove the nuts and lower the parking brake pedal assembly. Refer to Exploded View.
Separate the front parking brake cable from the parking brake pedal assembly.
Remove the parking brake pedal assembly.
INSTALLATION
Installation is in the reverse order of removal.
-
Perform the adjustment. Refer to Adjustment.
-
Perform the inspection. Refer to Inspection.
CAUTION:
Do not reuse adjusting nut after removing it.
Parking Brake Front Cable
Removal and Installation
Removal and Installation
REMOVAL
Remove the
center console assembly. Refer to Removal and Installation.
Remove the
driver seat. Refer to Removal and Instal ...
