Toyota Camry Owner's Manual (2023): Opening and closing the panoramic moon roof

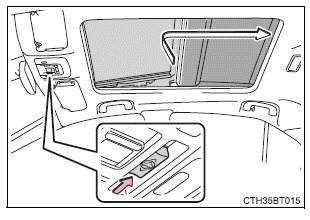

Opens the panoramic moon roof* Slide and hold the switch backward. The panoramic moon roof and electronic sunshade will open automatically.

The panoramic moon roof can be opened from the tilt-up position.

*: Quickly slide and release the switch in either direction to stop the panoramic moon roof partway.

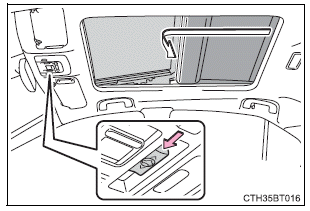

Closes the panoramic moon roof

Slide and hold the switch forward. The panoramic moon roof will fully close automatically.

â– The panoramic moon roof can be operated when

The engine switch is in IGNITION ON mode.

â– Operating the panoramic moon roof after turning the engine off

The panoramic moon roof and electronic sunshade can be operated for approximately 45 seconds after the engine switch is turned to ACCESSORY mode or turned off. They cannot, however, be operated once either front door is opened.

â– Jam protection function

If an object is detected between the panoramic moon roof and the frame in the following situations, travel is stopped and the panoramic moon roof opens slightly:

• The panoramic moon roof is closing or tilting down.
• The electronic sunshade is closing.

â– Door lock linked panoramic moon roof operation

• The panoramic moon roof can be opened and closed using the mechanical key.*
• The panoramic moon roof can be opened using the wireless remote control.*

*: These settings must be customized at your Toyota dealer.

â– Closing both the panoramic moon roof and electronic sunshade

Slide theswitch forward.

The electronic sunshade will close to the half-open position and pause. The panoramic moon roof will then fully close. Then the electronic sunshade will fully close.

â– When the panoramic moon roof or electronic sunshade does not close normally

Perform the following procedure:

1. Stop the vehicle.

2. Turn the engine switch to IGNITION ON mode.

3. Slide and hold the switch or switch forward. Continue pressing the switch for approximately 10 seconds after the panoramic moon roof or electronic sunshade closes and reopens. The panoramic moon roof and electronic sunshade will start to close.*

4. Check that the panoramic moon roof and electronic sunshade are fully closed and release the switch.

*: If the switch is released at the incorrect time, the procedure will have to be performed again from the beginning.

If the panoramic moon roof or electronic sunshade does not fully close even after performing the above procedure correctly, have the vehicle inspected by your Toyota dealer.

â– Alarm

The alarm may be triggered if the alarm is set and the panoramic moon roof is closed using the door lock linked panoramic moon roof operation function.

â– Panoramic moon roof open warning buzzer

A buzzer sounds and a message is shown on the multi-information display in the instrument cluster when the engine switch is turned off and the driver's door is opened with the panoramic moon roof open.

â– Customization

Some functions can be customized.

WARNING

Observe the following precautions.

Failing to do so may cause death or serious injury.

â– Opening and closing the electronic sunshade

• Check to make sure that all passengers do not have any part of their body in a position where it could be caught when the electronic sunshade is being operated.
• Do not let a child operate the electronic sunshade. Closing the electronic sunshade on someone can cause death or serious injury.

â– Opening and closing the panoramic moon roof

• The driver is responsible for panoramic moon roof opening and closing operations.

  In order to prevent accidental operation, especially by a child, do not let a child operate the panoramic moon roof. It is possible for children and other passengers to have body parts caught in the panoramic moon roof.

• Check to make sure that all passengers do not have any part of their body in a position where it could be caught when the panoramic moon roof is being operated.
• When using the wireless remote control or mechanical key and operating the panoramic moon roof, operate the panoramic moon roof after checking to make sure that there is no possibility of any passenger having any of their body parts caught in the panoramic moon roof. Also, do not let a child operate panoramic moon roof by the wireless remote control or mechanical key. It is possible for children and other passengers to get caught in the panoramic moon roof.

• When exiting the vehicle, turn the engine switch off, carry the key and exit the vehicle along with the child. There may be accidental operation, due to mischief, etc., that may possibly lead to an accident.

â– Jam protection function

• Never use any part of your body to intentionally activate the jam protection function.
• The jam protection function may not work if something gets caught just before the panoramic moon roof or electronic sunshade is fully closed.

  Also, the jam protection function is not designed to operate while the switch is being pressed. Take care so that your fingers, etc. do not get caught.

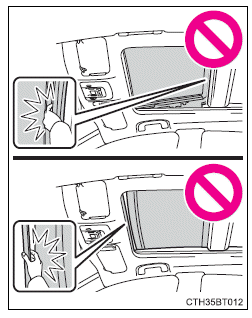

â– To prevent burns or injuries

Do not touch the area between the underside of the panoramic moon roof and the electronic sunshade. Your hand may get caught and you could injure yourself. Also, if the vehicle is left in direct sunlight for a long time, the underside of the panoramic moon roof could become very hot and could cause burns.

NOTICE

â– To prevent damage to the panoramic moon roof

• Before opening the panoramic moon roof, make sure that there are no foreign objects, such as stones or ice, around the opening.
• Do not hit the surface or edge of the panoramic moon roof with hard objects.
• Do not continuously press the switch after the panoramic moon roof has been fully opened or closed.

â– After the vehicle has been washed or rained on

Before opening the panoramic moon roof, wipe any water off the panoramic moon roof. Otherwise, water may enter the cabin when the panoramic moon roof is opened.
