Nissan Sentra B18 (2020-2025) Service Manual: Mirrors

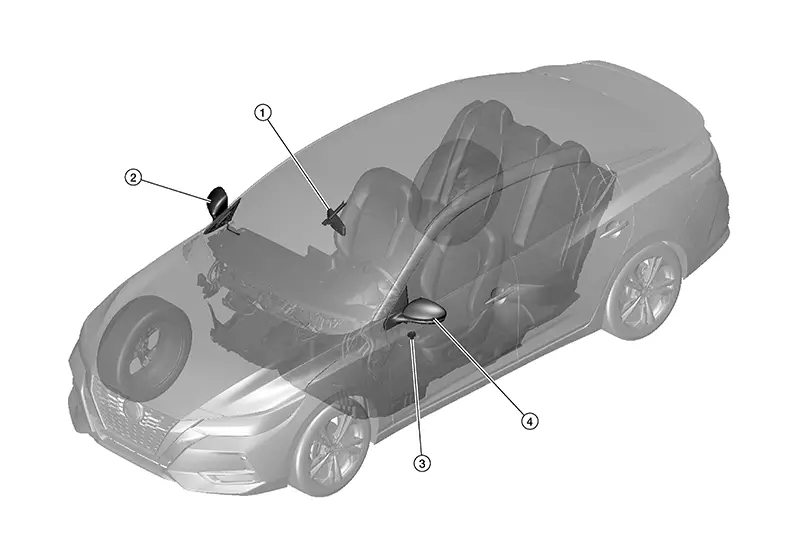

Component Parts Location
|
No. |
Component |
Function |
|---|---|---|
|
1. |
Auto Anti-Dazzling inside mirror or manual Anti-Dazzling inside mirror |
The sensor built inside the mirror detects the brightness of headlights of the Nissan Sentra vehicle behind and automatically changes the light transmission or manually changes the light transmission to decrease the brightness. |
|
2. |
Door mirror RH |
Door mirror motor operates door mirror face when mirror switch is operated. |
|
3. |
Door mirror remote control switch |
Refer to Door Mirror Remote Control Switch. |
|
4. |
Door mirror LH |
Door mirror motor operates door mirror face when mirror switch is operated. |
Door Mirror Remote Control Switch
-
The door mirror remote control switch is separate from main power window and door lock/unlock switch.
-
Mirror face angle adjustment is performed when door mirror remote control switch is operated.
-
The desired door mirror LH/RH selection is performed by operating the door mirror remote control switch.
Component Parts
...
