Nissan Sentra B18 (2020-2025) Service Manual: Ipdm E/r
Exploded View
|
1. |
IPDM E/R |
2. |
IPDM E/R cover A |
3. |
IPDM E/R harness cover B |
|
4. |
IPDM E/R case |
5. |
IPDM E/R harness cover C |
6. |
IPDM E/R harness cover D |
Removal and Installation
CAUTION:
-
IPDM E/R integrated relays are not serviceable and must not be removed from unit.
-
Be sure to perform “ADDITIONAL SERVICE WHEN REPLACING IPDM E/R” when replacing IPDM E/R. Refer to Work Procedure.
REMOVAL
Disconnect the negative battery terminal. Refer to Battery Disconnect.
Release
pawls and remove IPDM E/R cover A (1).
:
Pawl

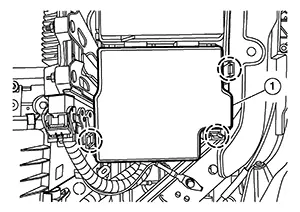

Release
pawls on IPDM E/R (1) and remove.
:
Pawl

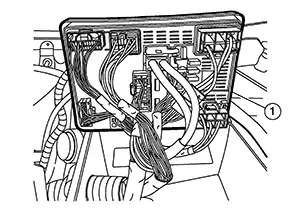

Disconnect
harness connectors from the IPDM E/R (1) and remove.
INSTALLATION
CAUTION:
Be sure to perform “ADDITIONAL SERVICE WHEN REPLACING IPDM E/R” when replacing IPDM E/R. Refer to Work Procedure.
Installation is in the reverse order of removal.
