Nissan Sentra B18 (2020-2025) Service Manual: Inspection

Inspection

COMPONENT PART

Check the front suspension for the following:

• Check each component for looseness or play.

• Inspect each component for abnormal wear or damage

Ball Joint Axial End Play

Warning:

When moving the front tires up and down by hand, place a jack (A) at the rear floor jack lift point to stabilize the Nissan Sentra vehicle or the vehicle could rock and fall off the lift resulting in serious personal injury or death.

Set the front wheels in a straight-ahead position.

Check ball joint boot for cracks or other damage. If there are cracks or other damage, replace transverse link.

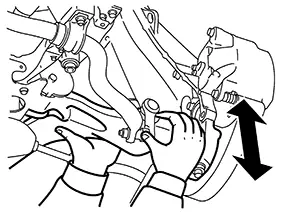

Move axle side of transverse link by hand. Check there is no end play.

CAUTION:

• Do not depress the brake pedal when measuring.

• Do not perform this inspection with the tires on the ground.

• Be careful not to damage ball joint boot. Do not damage the components by applying excessive force.

Oil Leakage Inspection

• If oil (A) does not extend beyond the spring seat (B) or upper half (C) of strut/shock absorber (1), this is slight oil seepage and the strut/shock absorber should not be replaced.



• If oil (A) does extend beyond the spring seat (B) or upper half (C) of strut/shock absorber (1) as shown, perform the following.



  • Use a finger to touch the oil that has extended beyond the spring seat or upper half of strut/ shock absorber.

    • If the oil layer is thick and contains large pieces of dust and debris, replace the strut/shock absorber.

    • If the oil layer is thin and does not contain large pieces of dust and debris, do not replace the strut/shock absorber.

Note:

If strut/shock absorber leakage is diagnosed in one strut/shock absorber, do not automatically replace both sides. Replace only the leaking strut/shock absorber.
