Nissan Sentra B18 (2020-2025) Service Manual: Inspection
FLUID LEAKAGE
-
Check clutch line for cracks, deterioration or other damage. Replace any damaged parts.
-
Check for fluid leakage by fully depressing clutch pedal while engine is running.
CAUTION:
If leakage occurs around connections, reinstall the lines or replace damaged parts, if necessary.
FLUID LEVEL

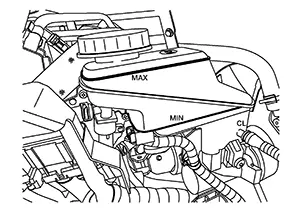

Check that
the fluid level in the reservoir tank is within the specified
range, between the MAX and MIN lines as shown.
Visually check for any clutch fluid leaks around the reservoir tank.
Check the clutch system for any leaks if the fluid level is extremely low (lower than MIN).
Clutch Fluid
...
Draining
Draining
CAUTION:
Do not spill clutch fluid onto painted surfaces.
If fluid spills, wipe up immediately and wash the affected area
with water.
Connect a
transparent vi ...
