Nissan Sentra Service Manual: Ignition timing
Inspection
1.CHECK IGNITION TIMING
- Attach timing light to the ignition coil No.1 harness.
- Check ignition timing.

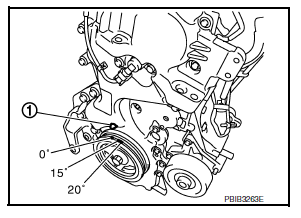

: Timing indicator
Specification : EC-486, "Ignition Timing"
>> INSPECTION END
Idle speed
Inspection
1.CHECK IDLE SPEED
With CONSULT
Check idle speed in “DATA MONITOR” mode of “ENGINE” using CONSULT.
Specification : EC-486, "Idle Speed"
With GST
Check ...
Evaporative emission system
Inspection
EVAP CANISTER
1.CHECK EVAP CANISTER
Block port (B).
Blow air into port (A) and check that it flows freely out of port (C).
Release blocked port (B).
Apply vacuum pressure to por ...
