Nissan Sentra Service Manual: Heater and air conditioning system symptoms

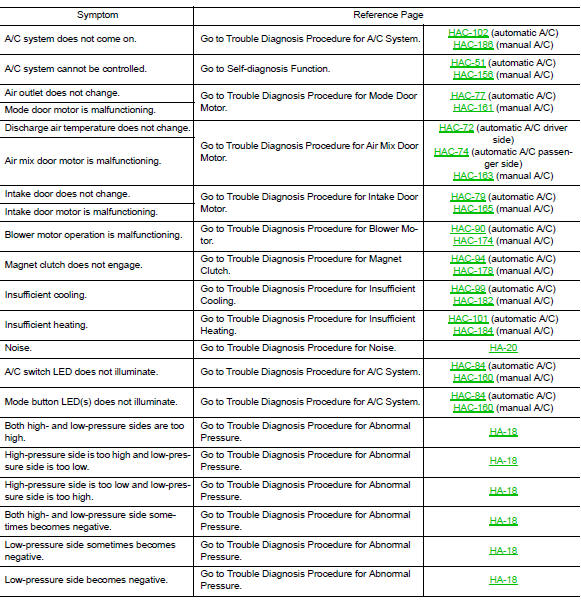

Symptom table
Refrigeration system symptoms
Trouble diagnosis for unusual pressure
Diagnose using a manifold gauge whenever system’s high and/or low side
pressure(s) is/are unusual. The
marker above the gauge scale in the following ta ...
