Nissan Sentra Service Manual: Function and System Application

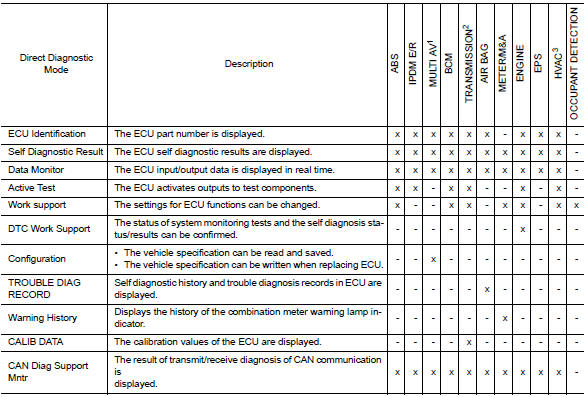

x : Applicable


x : Applicable

  1. With NAVI
  2. With CVT
  3. With auto A/C
Description
NOTE: This vehicle is diagnosed using the CONSULT-III plus. When CONSULT is connected with a data link connector equipped on the vehicle side, it will communicate with the control unit equipp ...

CONSULT Data Link Connector (DLC) Circuit
Inspection procedure If the CONSULT cannot diagnose the system properly, check the following items. Symptom Check item CONSULT cannot access any system. CONSULT D ...
