Nissan Sentra B18 (2020-2025) Service Manual: Front Door Speaker

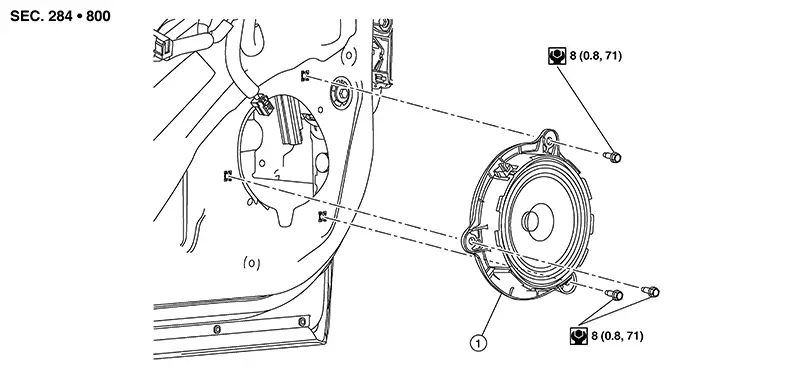

Exploded View
|
1. |
Front door speaker |
Removal and Installation
REMOVAL
Remove front door finisher. Refer to Removal and Installation.
Remove front door speaker bolts, then pull out front door speaker.
Disconnect the harness connector from front door speaker and remove.
INSTALLATION
Installation is in the reverse order of removal.
