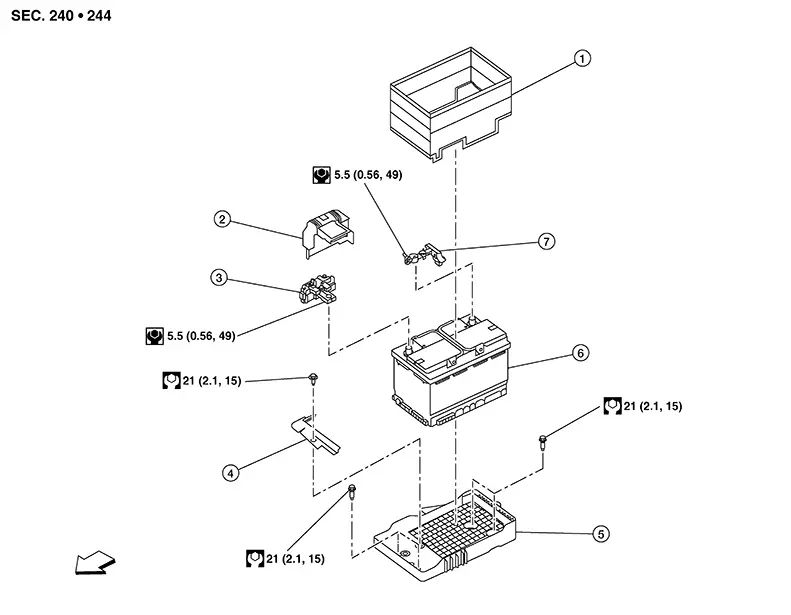

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Battery cover |
2. |
Positive terminal cover |
3. |
Fusible link box (battery) |
|
4. |
Battery bracket |
5. |
Battery tray |
6. |
Battery |
|
7. |
Negative terminal |
|
Front |
Battery
...
Battery Disconnect
Battery Disconnect
Warning:
Battery acid and battery acid fumes are extremely
dangerous and can cause severe burns and explosion. To help reduce
the risk of personal injury:
...
