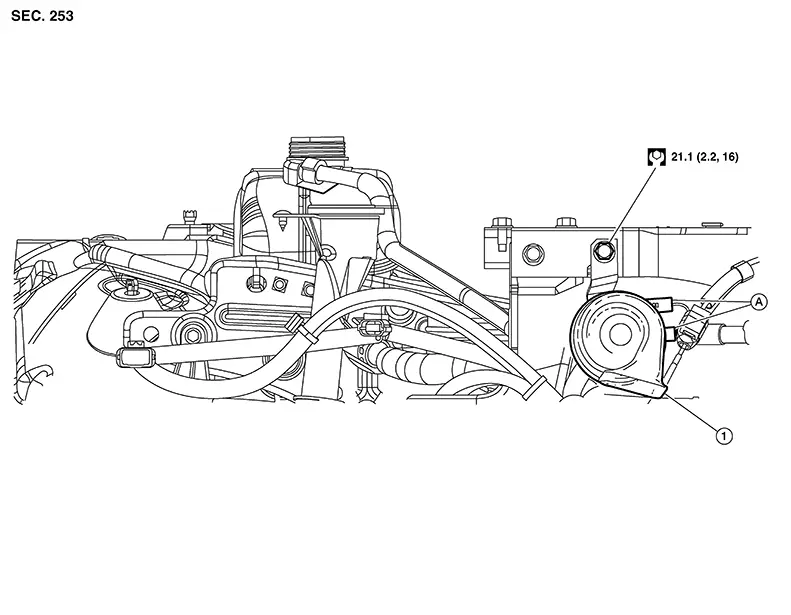

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Horn |
A. |
Harness Connectors |
Shown with the front fascia removed for clarity.
Horn
...
Removal and Installation
Removal and Installation
Removal
Remove the
upper core support cover. Refer to Exploded View.
Disconnect
the harness connectors from the horn. Note:
The harness connector locati ...
