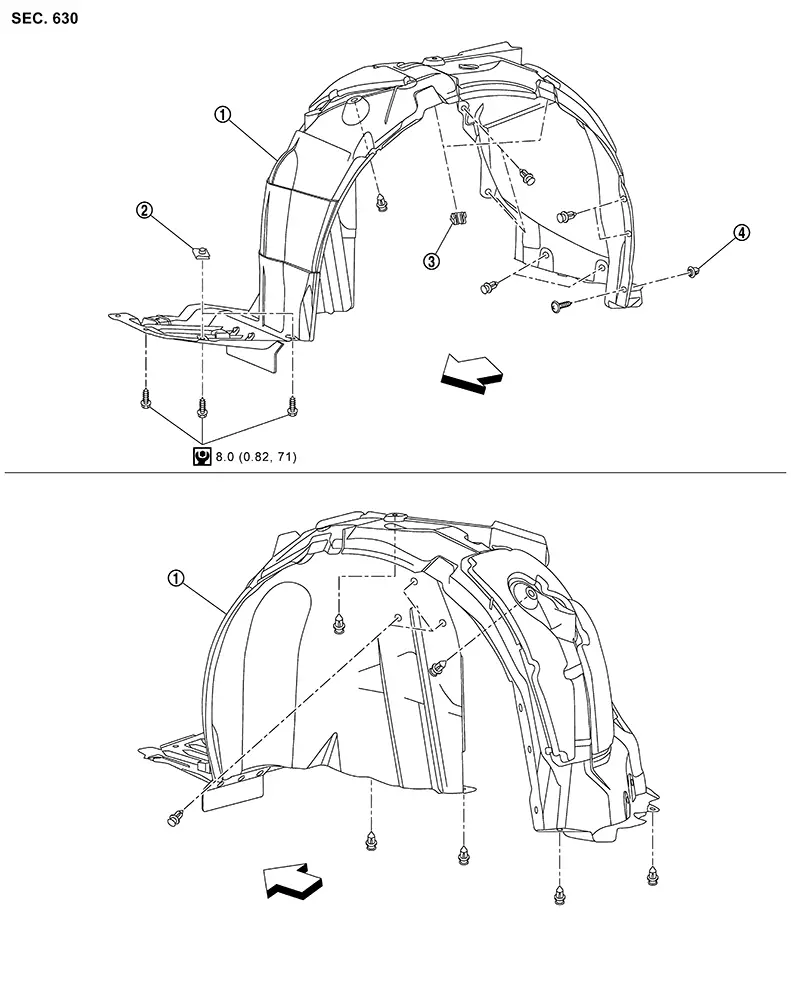

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Fender protector |
2. |
U-nut |
3. |
Clip |
|
4. |
Grommet |
|
Front |
Fender Protector
...
Removal and Installation
Removal and Installation
REMOVAL
Remove
fender protector screws and clips. Refer to Exploded View.
Remove
fender protector.
INSTALLATION
Installation is in the reverse order of
...
