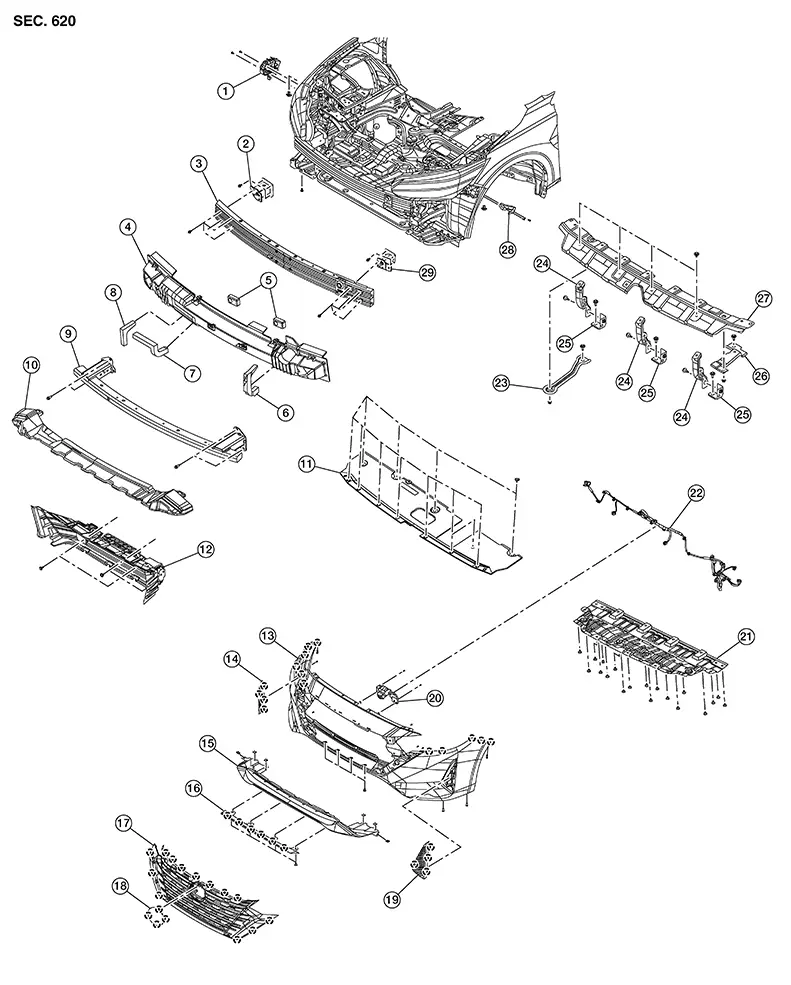

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Front bumper side bracket (RH) |
2. |
Front bumper reinforcement support (RH) |
3. |
Front bumper reinforcement (upper) |
|
4. |
Front bumper energy absorber (upper) |
5. |
Front bumper energy absorbers |
6. |
Front bumper protector (LH) |
|
7. |
Front bumper protector (center) |
8. |
Front bumper protector (RH) |
9. |
Front bumper reinforcement (lower) |
|
10. |
Front bumper energy absorber (lower) |
11. |
Core support cover |
12. |
Active grille shutter |
|
13. |
Front bumper fascia |
14. |
Front bumper finisher (RH) |
15. |
Radiator grille (upper) |
|
16. |
Front bumper molding |
17. |
Front grille |
18. |
Emblem |
|
19. |
Front bumper finisher (LH) |
20. |
Front camera |
21. |
Apron bracket |
|
22. |
Front bumper harness |
23. |
Front bumper fascia side retainer (RH) |
24. |
Front bumper fascia center retainer (lower) |
|
25. |
Front bumper fascia retainer (lower) |
26. |
Front bumper fascia side retainer (LH) |
27. |
Front bumper fascia retainer |
|
28. |
Front bumper fascia side bracket (LH) |
29. |
Front bumper reinforcement support (LH) |
|
Pawl |
Front Bumper
...
Removal and Installation
Removal and
Installation
CAUTION:
Front bumper fascia is made of resin. Use care
when handling to prevent damage. Avoid contact with oily substances.
REMOVAL
Remove clips ...
