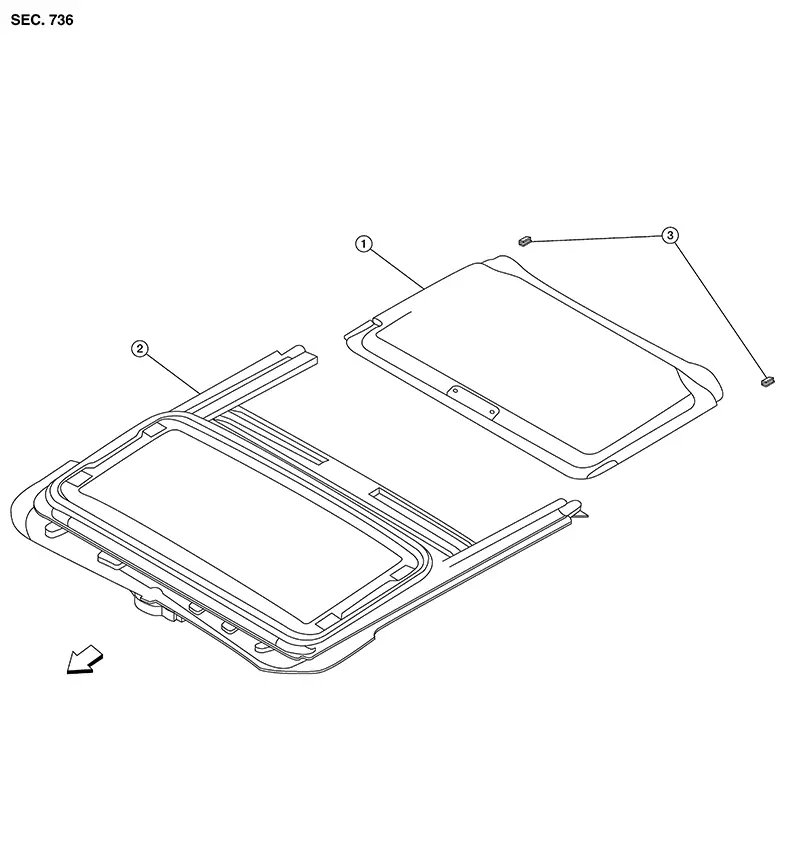

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Sunshade |
2. |
Moonroof unit assembly |
3. |
Sunshade stopper (LH/RH) |
|
|
Front |
Sunshade
...
Removal and Installation
Removal and Installation
REMOVAL
Remove the
headlining. Refer to Removal and Installation.
Remove the
sunshade stoppers [1 (LH/RH)] from the moonroof unit assembly side
rails (2).
...
