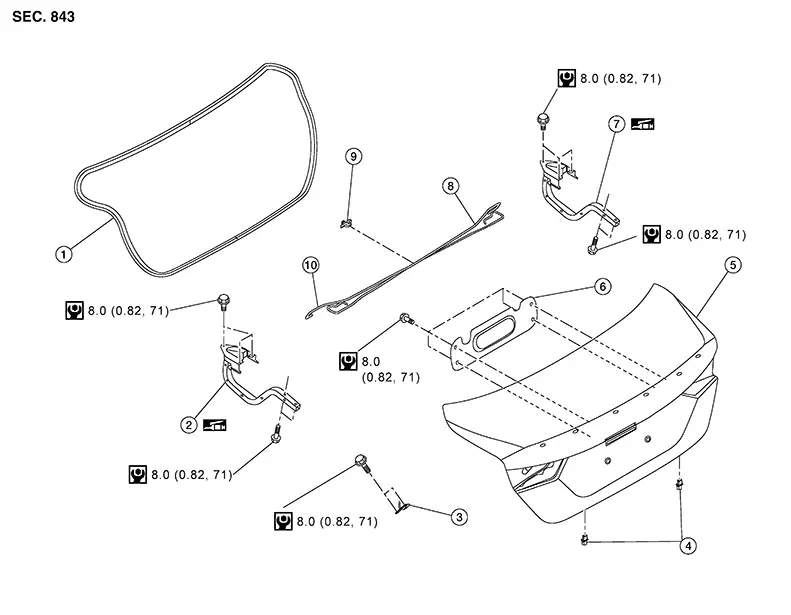

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Trunk lid weather-strip |
2. |
Trunk lid hinge (LH) |
3. |
Trunk lid striker |
|
4. |
Bumper rubber |
5. |
Trunk lid assembly |
6. |
Trunk lid dampener |
|
7. |
Trunk lid hinge (RH) |
8. |
Torsion bar (RH) |
9. |
Torsion bar clip |
|
10. |
Torsion bar (LH) |
Trunk Lid
...
Trunk Lid Assembly
Removal and Installation
Removal and Installation
CAUTION:
Use two people when removing or installing trunk
lid assembly due to its heavy weight.
...
