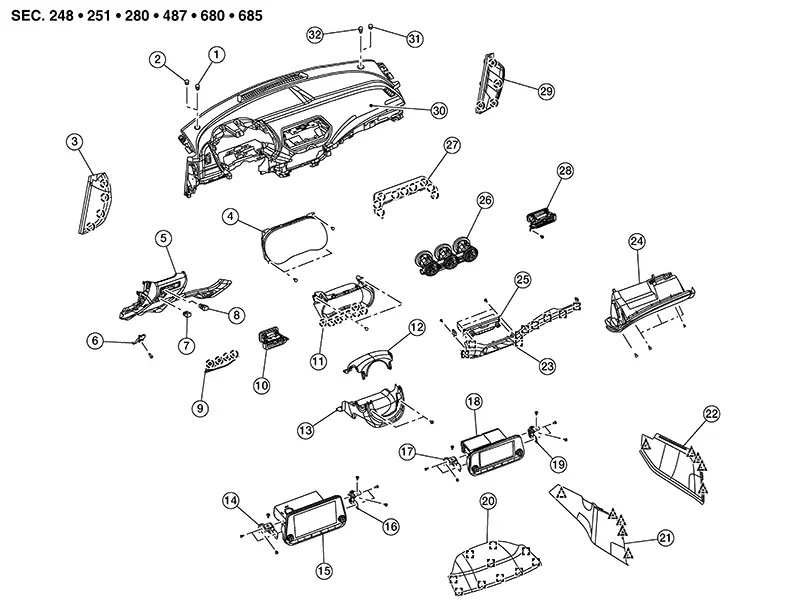

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View

1.

Optical sensor (if equipped)

2.

Mask

3.

Instrument side finisher (LH)

4.

Combination meter

5.

Instrument lower panel LH

6.

Fuel filler lid opener lever

7.

Trunk lid request switch

8.

ECO mode switch

9.

Fuse panel door

10.

Side ventilator grille (LH)

11.

Cluster lid A

12.

Steering column upper cover

13.

Steering column lower cover

14.

AV control unit bracket (LH)

15.

AV control unit (without base audio)

16.

AV control unit bracket (RH)

17.

AV control unit bracket (LH)

18.

AV control unit (with base audio)

19.

AV control unit bracket (RH)

20.

Cluster lid D

21.

Instrument lower cover (LH)

22.

Instrument lower cover (RH)

23.

Instrument finisher B

24.

Glove box assembly

25.

A/C switch assembly

26.

Center ventilator grille

27.

Cluster lid C

28.

Side ventilator grille (RH)

29.

Instrument side finisher (RH)

30.

Instrument panel assembly

31.

Sunload sensor (if equipped)

32.

Mask
